Linear ball bearings

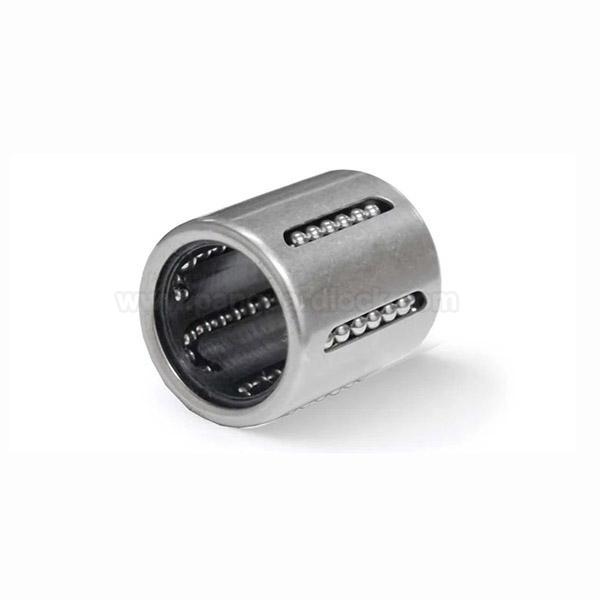

c, also known as linear ball bushings or linear slides, are mechanical components that enable smooth, low-friction linear (straight-line) motion along a shaft or guide rail by utilizing recirculating or non-recirculating steel balls. They are highly favored in applications requiring precision and accuracy.
Key Features and Benefits
Reduced Friction: They use rolling elements (balls) to minimize contact resistance, allowing for smoother movement, reduced heat generation, and less wear on components.
High Precision and Accuracy: Engineered for highly accurate and repeatable movements, which is critical for applications like CNC machines and robotics.
High Speed Capability: The low-friction design makes them efficient for high-speed operations.
Load Handling: They can support significant radial and axial loads, distributing weight evenly across the ball circuits.
Low Maintenance: While not entirely maintenance-free, they generally require less maintenance than plain bearings due to reduced wear.
Common Types
Linear ball bearings come in various designs to suit different application needs:
Recirculating Linear Ball Bearings: Balls travel continuously in a loop raceway within the bearing, allowing for virtually unlimited travel distance along the guide rail.
Non-Recirculating Linear Ball Bearings: The balls are contained in a fixed cage and rotate in place as the bearing moves. This design provides extremely smooth motion with a high degree of accuracy but is limited to the bearing's length of travel.
Open and Closed Types:
Closed Type: Has a solid outer shell and is used for standard applications with shafts supported only at the ends.
Open Type: Features a split outer shell, ideal for use with continuously supported shafts to prevent deflection in high-load applications.
Profiled Rail Guides (Square Rail): Feature rectangular-shaped rails with bearing blocks that provide high rigidity and superior load capacity, often used in heavy-duty CNC machines.
Round Rail Guides: Use cylindrical shafts and ball bushings. They accommodate shaft misalignments well and offer simple, cost-effective installation.
Applications
Linear ball bearings are used across a wide range of industries for precision motion control:
CNC Machines: Fundamental for providing the high precision required for accurate cutting, milling, and drilling operations.
Robotics and Automation Systems: Essential for the precise and repeatable movements of robotic arms, pick-and-place machines, and automated assembly lines.
3D Printers: Ensure the smooth and accurate movement of the print head and build platform.
Medical Devices and Diagnostic Equipment: Used in scanners, operating tables, and fluid dispensers where smooth, precise, and often quiet motion is paramount.
Packaging Machinery: The high speed and precision capabilities are vital for efficient filling, sealing, and cutting functions.
