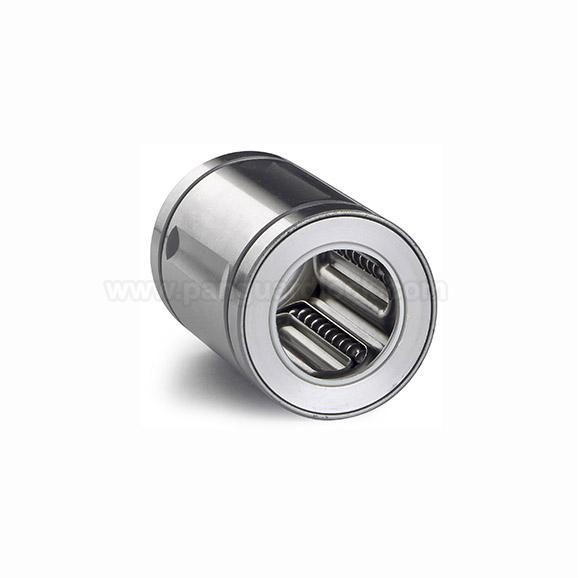

Linear Roller Bearings

Linear roller bearings use cylindrical or needle-shaped rollers instead of balls as rolling elements to support and guide movement along a straight path. They are specifically designed for heavy-duty, high-load applications due to their larger contact surface area, which provides greater rigidity and load distribution compared to ball bearings.
Key Features and Benefits
High Load Capacity: The primary advantage is the ability to handle significantly higher radial and axial loads than ball bearings, thanks to the line contact between the rollers and the raceway.
High Rigidity and Stiffness: Roller linear bearings offer excellent structural rigidity and minimal deflection under heavy stress, ensuring stable performance in demanding industrial environments.
Accuracy and Repeatability: They are engineered for high precision and consistent, repeatable movement, which is critical for demanding applications like machine tools.
Shock Resistance: Their robust design provides better resistance to shocks and impacts compared to ball bearings.
Durability and Long Life: The heavy-duty construction and even load distribution contribute to a long service life, even under continuous use.
Contamination Management: The diameter of the rollers can be more effective at managing impurities than the smaller balls in ball rail systems.
Common Types
Linear roller bearings come in different designs to suit specific application requirements:
Cylindrical Roller Bearings: The standard design using cylindrical rollers, offering superior load capacity and rigidity.
Needle Roller Bearings: Use long, slender rollers (needles) to maximize contact area, providing high load capacity and rigidity in a compact design, ideal for limited space installations.
Crossed Roller Bearings: Feature rollers arranged at 90-degree angles to each other in a crisscross pattern. This configuration provides maximum moment load capacity and exceptional rigidity for high-precision applications.
Profiled Rail Guides (Square Rail Systems): These use bearing blocks with recirculating rollers that run along a square-edged rail, offering superior stability and resistance to moment loads.
Applications
Due to their high load capacity and rigidity, linear roller bearings are widely used in demanding industries:
CNC Machines and Machine Tools: Essential for providing the high rigidity and precision required for accurate cutting, milling, and drilling operations, especially in heavy-duty applications.
Material Handling and Heavy Machinery: Used in cranes, industrial robots, and automated gantry systems that handle significant loads.
Packaging Machinery: Ensure high speed and precision in functions like filling and sealing.
Aerospace and Railway Sectors: Employed in systems requiring high durability and load support.
