chains drive sprockets

Chain drive systems are a highly efficient method of transmitting mechanical power and motion between shafts using an endless loop of interconnected metal links (the chain) and a set of toothed wheels called sprockets. The positive engagement between the chain links and sprocket teeth ensures synchronized, slip-free power transmission across a wide range of applications.

Function and Design
The core function of a chain and sprocket system is to transfer speed and torque with high efficiency and reliability.
Positive Engagement: The teeth of the sprockets interlock mechanically with the links of the chain, creating a positive drive that eliminates the slippage common in friction-based belt drives. This is crucial for applications requiring precise timing or constant speed ratios.
Torque Transmission: The system can transmit significant power and torque over short to moderate distances, making it suitable for heavy-duty applications that might challenge other drive methods.
Efficiency: Chain drive systems typically operate at a high mechanical efficiency, often exceeding 98%.
Accommodating Misalignment: While they require careful initial alignment, chain drives are generally more tolerant of minor parallel and angular misalignments than gear drives.
Types of Sprockets
Sprockets are available in various configurations depending on mounting needs, chain type, and application requirements.
Plate Sprockets (Type A): Flat plates with teeth and a central bore, used when mounting space is limited.

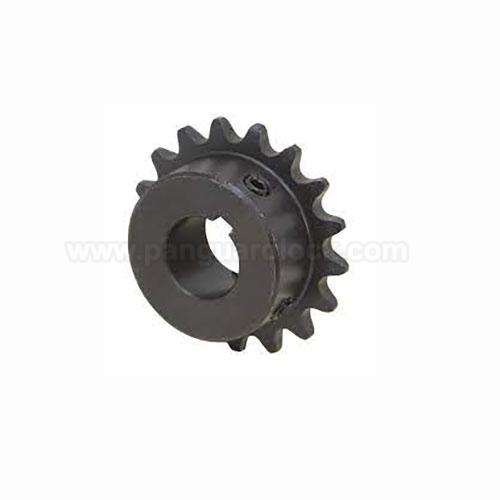

Hub Sprockets (Type B & C): Feature a hub extension on one (Type B) or both (Type C) sides for a more secure and stable attachment to the shaft using a keyway and set screw.
Bored-to-Size Sprockets: Come with a finished bore ready for immediate use.
Taper-Bushed Sprockets: Use a tapered bushing system for easy installation and removal, providing a tight, secure fit on the shaft.
Materials
Sprockets are typically made from durable materials to withstand high loads, wear, and shock.
Steel (e.g., 1045 Carbon Steel): The most common choice, offering excellent strength and durability. They are often heat-treated for enhanced tooth hardness and longer life.
Cast Iron: Used for large-diameter, slower-speed sprockets where cost is a major factor.
Stainless Steel: Used in corrosive environments (e.g., food processing, marine, chemical industries) for its resistance to rust and chemicals.
Plastics (e.g., Nylon, Acetal): The lightest and least expensive option, used for low-load applications where noise reduction or self-lubrication is important.
Common Applications
Chain and sprocket systems are widely used across diverse industries due to their robustness and efficiency.
Transportation: Widely used in bicycles and motorcycles to transmit power to the wheels.
Automotive: Employed as timing chains in engines to synchronize the camshaft and crankshaft rotations precisely.
Material Handling: Essential for conveyor systems, hoists, and elevators for moving materials and heavy loads.
Industrial Machinery: Powering components in pumps, compressors, agricultural equipment, and manufacturing lines.
Food Processing: Stainless steel versions are used in food handling equipment due to hygiene and corrosion resistance requirements.
