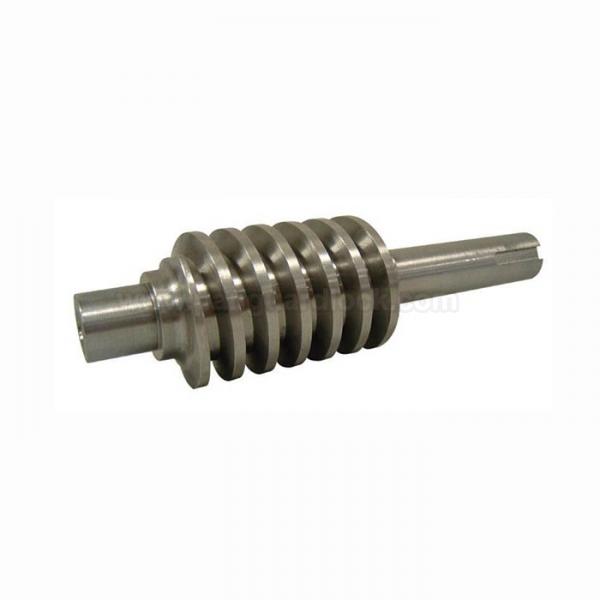

Worm shaft

A worm shaft, often simply called a worm or worm screw, is a component in a worm gear drive that resembles a threaded screw. It is the driving component (input shaft) in a worm gear set, meshing with and driving the toothed worm wheel (output gear) to transmit power, typically at a 90-degree angle.

Design and Function
The worm shaft's primary role is to convert its high-speed rotational motion into the slow, powerful rotation of the worm wheel.
Torque Transmission: The helical thread (or threads, referred to as "starts") on the worm surface pushes against the teeth of the worm wheel, generating significant torque in the output shaft.
Speed Reduction: Each full rotation of a single-start worm advances the worm wheel by only one tooth, resulting in a large gear reduction ratio in a single, compact stage (e.g., 60:1 ratio with a 60-tooth wheel).
Self-Locking: Due to the high sliding friction and small lead angle of the thread, many worm shafts create a self-locking mechanism where the worm wheel cannot drive the worm in reverse. This inherent braking feature enhances safety in applications like lifts and hoists.
Smooth Operation: The continuous sliding contact of the worm's threads along the worm wheel's teeth results in very smooth and quiet operation.
Materials
Worm shafts are typically made from hardened materials to withstand high sliding friction and wear. They are often paired with a softer worm wheel material (like bronze) to reduce friction and minimize wear. Common materials for worm shafts include:
Alloy Steel (e.g., AISI 4140, SNCM439): The most common choice, often case-hardened and ground to achieve a high-hardness surface and tough core to handle significant loads and impact resistance.
High Carbon Steel: A robust and cost-effective option for applications that require durability and can be heat-treated for enhanced hardness.
Stainless Steel: Used in corrosive environments (e.g., marine, food processing) where rust resistance is essential.
Common Applications
Worm shafts are used in a variety of applications where high torque, speed reduction, and self-locking capabilities are needed.
Lifting and Hoisting Equipment: The self-locking feature is critical for safety in elevators, cranes, and lift mechanisms.
Automotive Systems: Found in steering mechanisms, windshield wipers, and Torsen differentials for precise motion control.
Industrial Machinery: Used in conveyor systems, mixers, and packaging machinery for reliable, low-speed, high-torque power transmission.
Robotics and Automation: Employed for precise positioning and controlled movement in automated systems.
Musical Instruments: Used in the tuning mechanisms (machine heads) for guitars, double basses, and banjos.
