Worm gears

Worm gears are a specialized type of gear system consisting of a screw-like gear (the worm) and a mating gear (the worm wheel). They are primarily used to transmit power and motion, efficiently converting high-speed rotational movement into low-speed rotation or linear motion.

Key Functions and Design
The core advantages of worm gears lie in their unique gear ratio and self-locking capabilities.
High Gear Ratios: The worm typically has very few "teeth" (threads), while the worm wheel has many. This allows for very high single-stage reduction ratios (ee.g., 1:10 up to 1:100 or higher), which would require multiple stages with standard gear drives.
Self-Locking Feature: In certain designs, the small lead angle of the worm thread means that only the worm can drive the worm wheel; the wheel cannot turn the worm backwards. This "self-locking" characteristic makes them ideal for lifting equipment and hoists, eliminating the need for extra braking mechanisms.
Smooth and Quiet Operation: Due to the continuous and sliding contact of the meshing teeth, worm gear drives operate more smoothly and quietly than other gear types.
Materials
The worm and worm wheel are usually made from different materials to optimize performance, wear resistance, and cost.
Worm: Typically made of hardened and ground high-strength steel (e.g., AISI 4140 alloy steel) to ensure high rigidity and wear resistance.

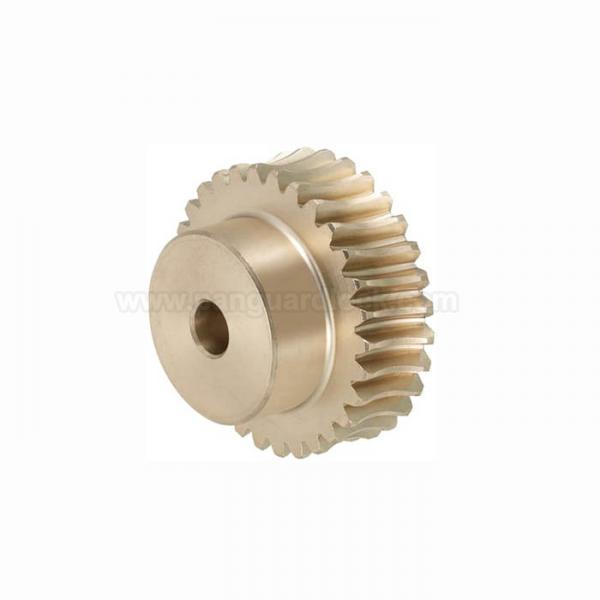

Worm Wheel: Usually made from a softer material, such as bronze, cast iron, or certain engineering plastics, to reduce friction, improve efficiency, and absorb shock, protecting the harder worm surface.
Common Applications
Due to their unique properties, worm gears are widely used in applications requiring large reduction ratios, smooth operation, or self-locking functions:
Lifting Machinery and Hoists: Utilizing the self-locking feature to prevent loads from slipping.
Automotive Steering Systems: Converting the steering wheel's rotation into the linear motion needed to turn the wheels.
Speed Reducers (Gearboxes): In industrial applications, used to decrease motor speed and increase torque output.
Instrumentation: In systems requiring precise control and positioning, such as optical instruments, automation equipment, and robotics.
Small Devices: Such as fishing reel winders and windshield wipers.
