Worm Gears

A worm gear is a gear configuration consisting of a screw-like shaft (the worm) that meshes with a toothed wheel (the worm wheel or gear) to transmit motion and power between non-intersecting shafts, typically at a 90-degree angle.
This system is highly valued for its ability to achieve large speed reductions and high torque multiplication in a compact space, along with a unique "self-locking" feature in many configurations.
How Worm Gears Work
The worm, which functions as the driving component, resembles a screw thread. As an engine or motor rotates the worm, its threads continuously slide against the teeth of the worm wheel, pushing it to turn.

Key operational characteristics include:
• High Gear Reduction: A single-start worm (one thread) advances the worm wheel by only one tooth for every 360-degree rotation of the worm. A 50-tooth worm wheel used with a single-start worm yields a 50:1 gear ratio, which would require multiple stages with conventional gears.
• Self-Locking: Due to the high sliding friction and lead angle, the worm wheel typically cannot turn the worm in reverse. This inherent braking mechanism is crucial for safety applications like lifts and hoists, where the load must hold its position when power is removed.
• Quiet Operation: The continuous sliding contact, compared to the rolling contact of most other gears, results in smooth, quiet operation, making them suitable for noise-sensitive environments.

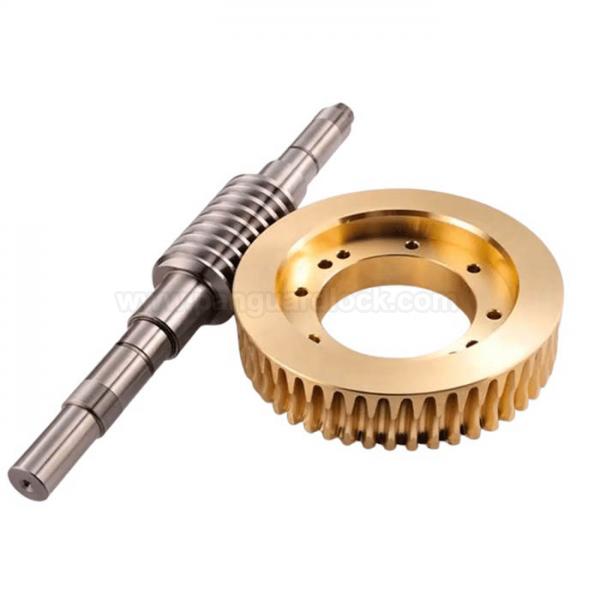

• Material Composition: To manage friction and wear, the worm is typically made of a hard material (like hardened steel), while the worm wheel is made of a softer, sacrificial material (like bronze or brass).
Common Applications
Worm gears are found in a wide variety of domestic and industrial applications, including:
• Material Handling: Conveyors, lifts, and hoists benefit from their self-locking and high-torque capabilities.
• Automotive Systems: Used in steering mechanisms and windshield wipers.
• Musical Instruments: The tuning pegs on guitars, banjos, and violins use miniature worm drives for precise tension adjustments.
• Home Appliances: Found in stand mixers, automatic security gates, and elevators.
• Robotics & Automation: Their compact design and precise control are ideal for robotic joints and actuators.
