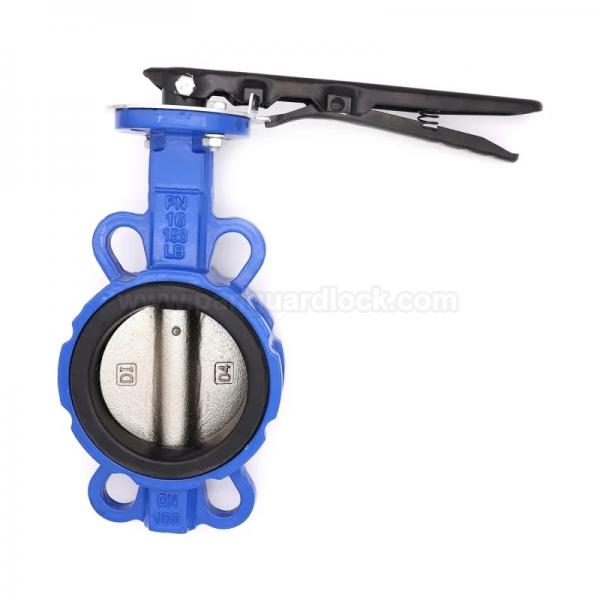

Wafer Type Butterfly Valve

SIZE: 1 1/2"-24"

STANDARD:

Valve Design: BS EN593/BS5155/API609/DIN3354

Face to Face: ISO 5752-20/BS EN558-20/API609

Flange Drilling: ASME B16.1 Class125/ASME B16.5 CL150/ASME B16.47 CL150/ DIN 2501 PN10-16/EN1092 PN10-16/JIS10K

Hydraulic Test: EN12266-1/API 598/ISO5208/JIS B2003

Shell Test Pressure: 24 bar/15 bar

Sealing Test Pressure: 17.6 bar/11 bar

ACTUATOR

Handle Lever, Worm Gear, Pneumatic Actuator,Chain Operator

PRESSURE

Class 125/150, PN 10/16/25, 5K/10K/16K
