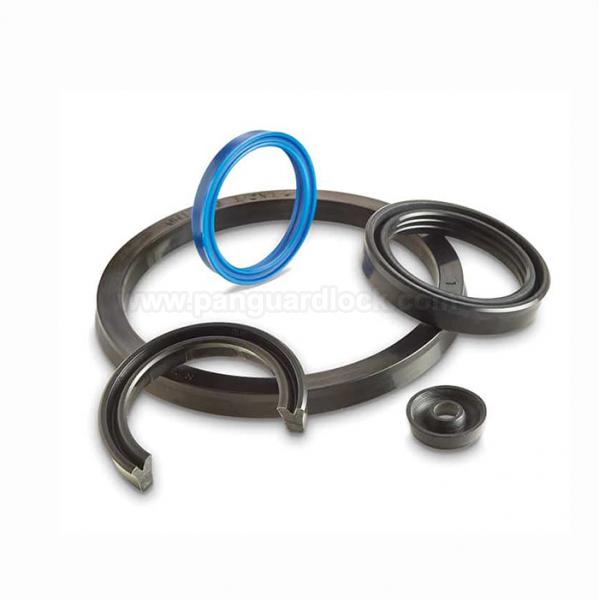

U-Cup Pneumatic Seals

U-cup pneumatic seals are versatile, U-shaped sealing solutions that provide an airtight barrier to prevent compressed air from escaping in pneumatic cylinders and valves. Their design allows them to adapt to pressure fluctuations, making them effective for both piston and rod sealing applications in reciprocating motion systems.
Function and Design
The unique U-shaped profile is central to their effectiveness, using the system's own pressure to enhance the seal.
Self-Energizing: As air pressure increases, it forces the seal's lips outward, increasing the contact force against the cylinder bore or rod surface. This pressure-activated response provides a tighter seal when needed.
Dual Lips: The design typically features an inner dynamic sealing lip and an outer static sealing lip, which ensures reliable sealing against both the moving and stationary components.
Low Friction: They are generally designed with a small contact area at the sealing surface to minimize friction and wear, which is essential for the smooth, high-speed operation characteristic of pneumatic systems.
Unloaded vs. Loaded:
Unloaded U-cups rely entirely on system pressure to activate the lips and are suited for applications with consistent pressure and limited space.
Loaded U-cups include an O-ring or quad ring energizer fitted between the lips, which pushes the lips outward and enhances sealing effectiveness at very low pressures, where system pressure alone might be insufficient.
Materials
Material selection focuses on low friction, high wear resistance, and compatibility with compressed air (lubricated or non-lubricated systems).
Polyurethane (PU): The most common material due to its high abrasion resistance, strength, and durability.
Nitrile Rubber (NBR/Buna-N): A general-purpose elastomer offering good resilience and oil resistance, suitable for lubricated pneumatic systems.
PTFE (Polytetrafluoroethylene): Used in high-speed, lube-free applications because of its extremely low coefficient of friction and wide temperature range.
FKM (Fluoroelastomer/Viton): Provides excellent resistance to high temperatures and a broad range of chemicals, used in more demanding environments.
Common Applications
U-cup seals are versatile and widely used across various industries in dynamic and static pneumatic applications.
Factory Automation: Used in pneumatic cylinders for assembly lines, sorting mechanisms, and pick-and-place systems.
Packaging Machinery: Ensure precise and controlled movement in equipment for filling, sealing, and product handling.
Robotics: Employed in certain robotic movements where high speed and reliability of pneumatic power are necessary.
Medical Equipment: Found in devices like hospital beds and dental chairs, where clean operation is important and low friction is desired.
Automotive: Used in various pneumatic tools and systems within automotive manufacturing and repair.
