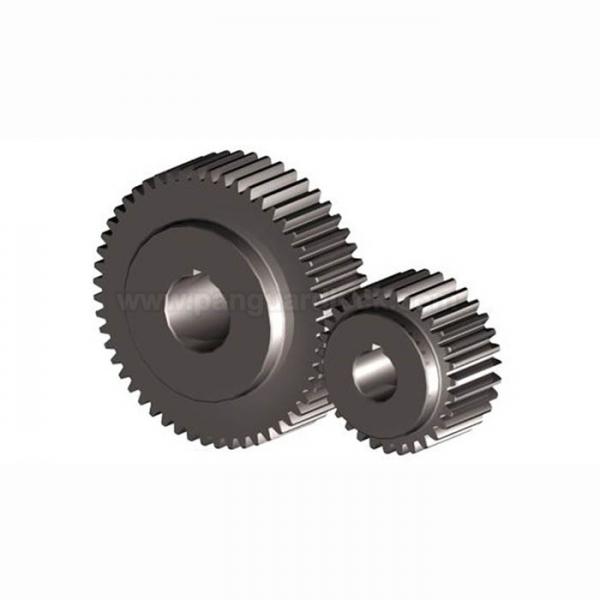

Spur gears

Spur gears are the simplest and most common type of gear, featuring straight teeth that transmit power and motion between parallel shafts. They are highly efficient and cost-effective but can be noisy at high speeds.

Design and Types

Spur gears have teeth cut parallel to the axis of rotation, which results in line contact across the entire tooth face when they mesh. This design ensures high mechanical efficiency, often reaching up to 99%.

External Spur Gears: These have teeth on the outer surface of the cylinder and are the most common. When two external gears mesh, they rotate in opposite directions.

Internal Spur Gears: These have teeth on the inner side of a ring or annulus. An external gear (pinion) meshes internally with the ring gear, causing both to rotate in the same direction. This configuration is more compact and is often used in planetary gear systems.

Rack and Pinion: This arrangement involves a circular spur gear (pinion) meshing with a flat, straight-line gear section (rack) to convert rotational motion into linear motion, or vice versa.

Materials and Manufacturing

Spur gears are made from a variety of materials depending on the application requirements for strength, durability, and noise levels.

Metals: Materials like steel (carbon steel, alloy steel, stainless steel), brass, bronze, and cast iron are used for applications requiring high strength and load capacity. Steel is often case-hardened to increase wear resistance.

Plastics: Polymers such as acetal (POM) and nylon (polyamide) are ideal for low-load applications where quiet operation, low weight, and corrosion resistance are priorities. Some plastic gears incorporate metal cores for secure fastening.

Common manufacturing processes include hobbing (most common), shaping, milling, and for high-volume, low-cost plastic gears, injection molding. Heat treatments like carburizing, nitriding, and induction hardening are often applied to metal gears to enhance durability.

Applications

Spur gears are versatile and used in numerous applications to transmit power, multiply torque, or control speed and position.
Household Appliances: Found in washing machines, blenders, and dryers.

Automotive Industry: Used in transmissions, engines, and differential gears, though not often in passenger car transmissions due to noise at high speeds.

Industrial Machinery: Essential components in conveyor systems, gearboxes, pumps, and machine tools.

Robotics and Automation: Integral to small-scale robotic arms, medical devices, and other systems where precise motion control is needed.

Aerospace and Marine: Utilized in aircraft engines and marine hoists where reliability is critical.
