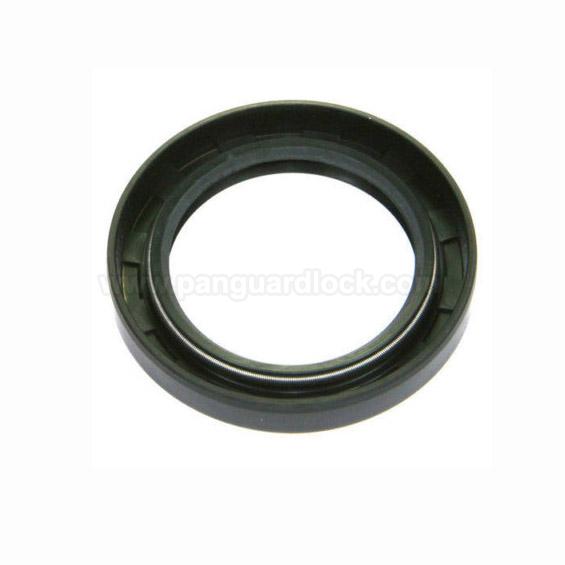

Single Lip Oil Seals

Single lip oil seals, also known as radial shaft seals, are compact mechanical components designed primarily to seal in lubricant and prevent the ingress of contaminants in rotating machinery. They are simple, cost-effective, and widely used for general-purpose applications where moderate sealing efficiency is sufficient.
Key Features and Benefits
Lubricant Retention: Their primary function is to contain oil, grease, and other lubricants within a component, ensuring proper lubrication of bearings and gears.
Contamination Prevention: They act as a barrier against external contaminants like dust, dirt, water spray, and debris entering the sealed system.
Cost-Effective: Due to their simple design and the use of common materials, they are an economical sealing solution for many industrial applications.
Compact Design: They require minimal axial space, allowing for more compact machinery designs.
Ease of Installation: Designed for straightforward press-fit installation into a housing bore.
Construction
A single lip oil seal consists of three main components:
Metal Case/Outer Shell: Provides structural rigidity and allows for easy press-fit installation and a secure static seal in the housing bore.
Elastomer Sealing Lip: The critical component that maintains contact with the rotating shaft.
Garter Spring: A small coiled spring positioned behind the sealing lip to maintain consistent radial force on the shaft, compensating for minor shaft runout, wear, and material degradation over time.
Common Materials
The material of the sealing lip is selected based on the operating environment's temperature, chemical exposure, and shaft speed:
Nitrile (NBR / Buna-N): The most common and cost-effective material, offering good resistance to petroleum-based oils, greases, and fuels within a temperature range of -30°C to +120°C.
Viton® (FKM): Used for applications requiring resistance to high temperatures (up to +200°C) and aggressive chemicals, acids, and fuels.
Silicone (VMQ): Offers superior flexibility and performance in extreme low and high temperatures (e.g., -60°C to +200°C).
EPDM: Primarily used for resistance to water, steam, and ozone in non-oil-based applications.
Applications
Single lip oil seals are suitable for applications where the difference in pressure between the sealed media and the atmosphere is low, and general contamination exclusion is required:
Automotive Industry: Used in engines, transmissions, and axles to seal in oil and grease.
General Industrial Machinery: In gearboxes, motors, pumps, and fans where oil or grease retention is needed.
Agricultural Equipment: In various components to protect bearings from dust and dirt ingress.
Household Appliances: In washing machines and dishwashers for water and grease sealing.
