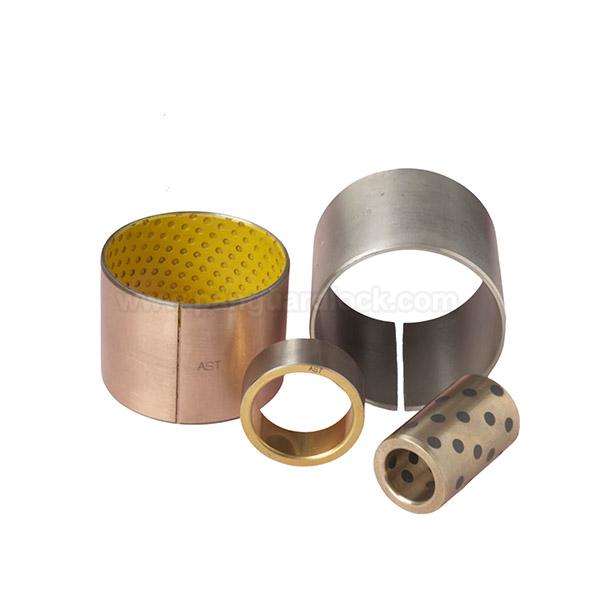

Self-Lubricating Composite Bearings

Self-lubricating composite bearings are engineered components that integrate multiple materials to provide high strength and continuous, maintenance-free lubrication, making them suitable for demanding environments without the need for external oils or grease.
Key Features and Benefits
Maintenance-Free Operation: The integrated lubricant eliminates the need for routine relubrication, reducing labor costs and equipment downtime.
High Load Capacity: The use of strong base materials, like steel or fiberglass, allows the bearings to support high radial and shock loads.
Corrosion and Chemical Resistance: Many composite materials are resistant to water, chemicals, and contaminants, offering superior performance in harsh or wet environments where metal bearings would corrode.
Low Friction and Wear: Solid lubricants (PTFE, graphite, MoS₂) shear during sliding to create a low-friction transfer film on the mating surface, ensuring smooth operation and extended life.
Contamination Tolerance: Without sticky external grease, the bearings do not attract dirt and debris, preventing the formation of abrasive pastes that can damage traditional bearings.
Lightweight and Compact: Composite designs are often thin-walled and lighter than comparable metal bearings, saving space and weight in machinery.
Common Types and Construction
Composite plastic bearings typically fall into two main categories: Metal-Polymer and Filament Wound.
Metal-Polymer Composite Bearings
These are multi-layer bearings combining the strength of metal with a low-friction polymer lining.
Layer Material (Typical) Purpose
Backing Steel, Stainless Steel, Bronze Provides mechanical strength, rigidity, and easy press-fit installation into a housing.
Interlayer Porous Sintered Bronze Metallurgically bonded to the backing to provide a strong link for the liner and aid heat dissipation.
Sliding Layer PTFE, POM/Acetal, PEEK + Fillers The self-lubricating surface with embedded solid lubricants that creates the transfer film on the shaft.
Filament Wound Composite Bearings
These use high-strength fibers wound into a structural matrix with integrated lubrication.
Materials: High-strength fibers (fiberglass or carbon fiber) are encapsulated in an epoxy or polyester resin, with solid lubricants (e.g., PTFE) in the internal liner.
Properties: Offer very high compressive load capacity, shock absorption, and are completely corrosion-proof, making them ideal for heavy-duty, high-load applications like those found in marine or off-highway equipment.
Applications
Self-lubricating composite bearings are used in a wide range of demanding applications where reliability and low maintenance are critical:
Automotive Industry: Suspension systems, brake linkages, and steering columns.
Heavy Machinery: Excavators, cranes, loaders, and other construction and mining equipment due to their robustness against contamination and shock loads.
Food and Beverage Processing: Equipment requiring frequent washdowns and strict hygiene standards, as there is no grease to leak or attract debris.
Aerospace and Marine: Flight control systems, landing gear assemblies, rudder systems, and winches, benefiting from their high strength-to-weight ratio and corrosion resistance.
General Industrial Automation: Pumps, hydraulic systems, and conveyor systems that require clean, reliable, and quiet operation.
