Rod Hydraulic Seals

Rod hydraulic seals are crucial dynamic seals installed in hydraulic cylinders to prevent the pressurized operating fluid from leaking out along the piston rod and to stop external contaminants from entering the system. They work in conjunction with wiper seals to ensure system integrity and efficiency.
Function and Design
Rod seals are one of the most critical seals in fluid power equipment, performing a dual function in a dynamic environment where the rod moves in and out of the cylinder head.
Fluid Containment: They act as a pressure barrier, maintaining the high pressure within the cylinder to ensure efficient system operation.
Lubrication Management: The seal is designed to leave a very thin film of oil on the rod surface during the return stroke to lubricate the seal itself and the accompanying wiper seal, which also helps prevent rod corrosion. This film must be thin enough to be wiped clean by the wiper seal on the next stroke.
Contamination Prevention: Rod seals work in tandem with a wiper or scraper seal, which is the outermost seal that removes dirt, moisture, and other foreign particles from the rod surface before it can enter the cylinder and damage internal components.
Single/Double Acting: Rod seals are typically single-acting (pressure from one side), but double-acting configurations exist for applications where pressure may be exerted on both sides.
Types of Rod Seals
Various profiles and designs are available to meet the specific requirements of different applications and operating conditions.
U-Cup Seals: These are common, featuring a U-shaped cross-section with a dynamic inner lip and static outer lip. They are often made of polyurethane and are suitable for medium to heavy-duty applications.

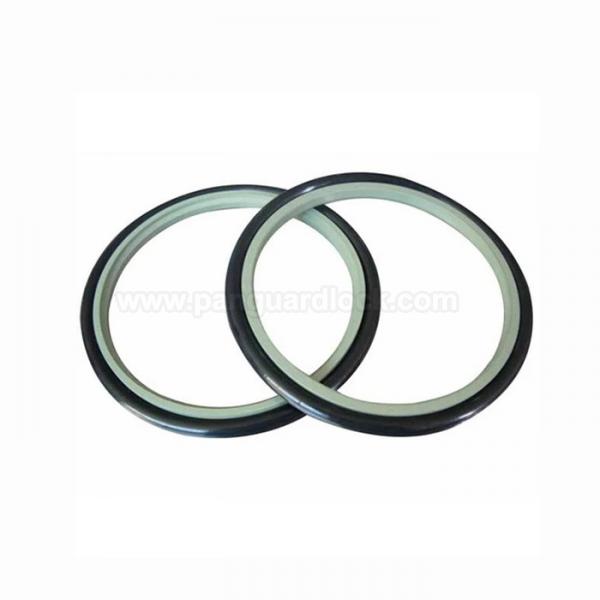

Energized Seals: These combine a rubber energizer (like an O-ring or X-ring) with a harder sealing material (e.g., PTFE or polyurethane slide ring) to provide consistent sealing force, especially at low pressures.
Vee-Packing (Chevron) Seals: These are multiple-lipped seals, often used in sets, designed for heavy-duty applications and challenging environments due to their robust design and ability to handle high pressures.
Buffer Seals: For very heavy-duty applications, a buffer seal may be installed internally, before the primary rod seal, to protect the main seal from pressure spikes and contain internal contaminants.
Materials
The material is selected based on factors such as temperature, pressure limits, and chemical compatibility with the hydraulic fluid.
Polyurethane (PU): The most common material due to its excellent abrasion resistance, high tensile strength, and resistance to extrusion under high pressure.
Nitrile Rubber (NBR): A general-purpose elastomer, known for its good resistance to petroleum-based hydraulic oils and a wide temperature range.
PTFE (Polytetrafluoroethylene): Offers a very low coefficient of friction, high chemical resistance, and wide temperature tolerance, making it suitable for aggressive media or high-speed applications. It is often used in composite seal assemblies.
Fluoroelastomer (FKM/Viton): Provides excellent resistance to high temperatures and a broad range of aggressive chemicals and fuels.
Common Applications
Rod seals are essential components across various industries utilizing hydraulic power.
Construction Equipment: Used extensively in excavators, cranes, and bulldozers.
Agricultural Machinery: Found in tractors, combine harvesters, and other farm equipment.
Industrial Machinery: Employed in hydraulic presses, lifting equipment, and factory automation systems.
Aerospace and Shipbuilding: Utilized in critical systems where reliability under demanding conditions is essential.
