Recirculating Linear Bearings

Recirculating linear bearings are a category of linear motion components that achieve smooth, low-friction straight-line movement by incorporating an internal mechanism to continuously cycle rolling elements (usually balls or rollers). This design allows for virtually unlimited travel distance along a guide rail or shaft.
Key Features and Benefits
Unlimited Travel: The primary advantage of the recirculating design is that the bearing can travel the entire length of the guide mechanism, limited only by the rail length.
Low Friction and High Speed: The use of rolling elements minimizes contact resistance, allowing for very smooth operation, high travel speeds, and reduced energy consumption.
High Load Capacity: Depending on whether balls or rollers are used, these bearings can handle significant radial, axial, and moment loads.
High Precision: They are manufactured to tight tolerances (often ABEC 5, 7, 9 equivalents) to ensure highly accurate and repeatable positioning.
Integrated Sealing and Lubrication: Most modern designs include integrated seals to protect internal raceways from contaminants and often feature lubrication points for maintenance.
Common Types
Recirculating linear bearings come in various configurations suited for different industrial demands:
Recirculating Ball Bushings (Round Rail Guides):
Description: These use an outer housing containing ball circuits that run along a standard cylindrical shaft. The balls exit the load zone, return through a non-loaded channel inside the housing, and re-enter the load zone.
Use Cases: Cost-effective solutions for moderate loads in general automation, 3D printers, and packaging machinery.

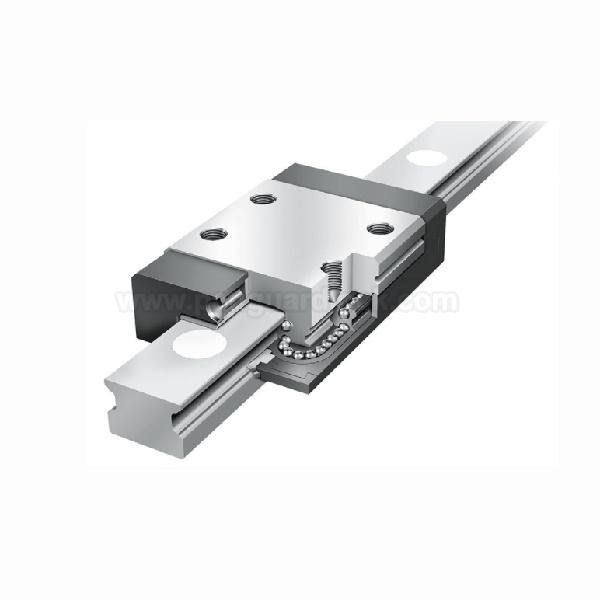

Recirculating Profiled Rail Guides (Square Rail Systems):
Description: These use a rigid, often square, precision-ground rail and a matching bearing block. The rolling elements recirculate within the block as it moves along the rail.
Use Cases: The industry standard for high-performance applications like CNC machines, robotics, and heavy-duty material handling, offering superior rigidity and load capacity.
Recirculating Roller Bearings:
Description: Similar to ball types but use cylindrical or crossed rollers instead of balls.
Use Cases: Designed specifically for extremely high loads and exceptional rigidity in large machine tools and heavy gantry systems.
Miniature Guides:
Description: Very small profiled rail guides used in compact applications.
Use Cases: Ideal for medical equipment, delicate automation, and semiconductor manufacturing where space is limited but high precision is required.
Applications
Recirculating linear bearings are essential in high-performance machinery that requires reliable, precise, and continuous linear motion:
CNC Machines and Machine Tools: Crucial for guiding cutting tools and workpieces with the rigidity and precision needed for accurate machining.
Robotics and Automated Systems: Enable the smooth, repeatable movements of robotic arms, pick-and-place systems, and assembly lines.
3D Printing and Additive Manufacturing: Provide the high accuracy needed for precise layer deposition.
Medical and Scientific Equipment: Used in diagnostic scanners, surgical robots, and laboratory automation where reliable, clean motion is paramount.
Material Handling: Employed in automated gantry systems and conveying lines.
