Rack & Pinion Gears

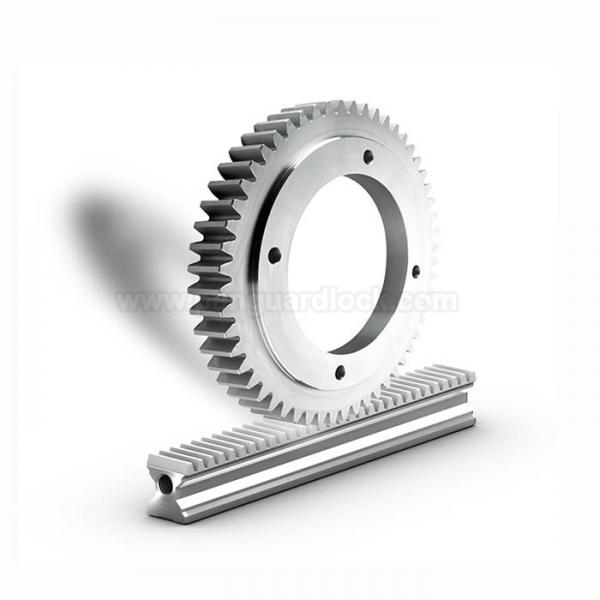

A rack and pinion is a type of linear actuator that consists of a circular gear (the pinion) meshed with a flat or straight toothed bar (the rack). This mechanism is primarily used to convert rotational motion into linear (straight-line) motion, or vice versa.
How They Work
The operation is based on the interaction between the two components:
• Rotational Input: When the pinion gear rotates (driven by a motor or manual input like a steering wheel), its teeth engage with the teeth on the rack.
• Linear Output: This engagement causes the rack to move in a straight line along its length.
• Bidirectional Function: Conversely, moving the rack linearly will cause the pinion to rotate.
Common Applications
Rack and pinion systems are valued for their mechanical simplicity, high load capacity, and precise control. Common applications include:
• Vehicle Steering: This is the most common use in modern cars and small trucks. Turning the steering wheel rotates the pinion, which moves the rack from side to side, turning the wheels.
• Industrial Automation & Robotics: They are used in CNC machines, assembly lines, and robotic arms for precise positioning and movement of components.
• Lifting Mechanisms: Found in jack systems, elevators, and stairlifts for vertical movement.
• Rack Railways: Locomotives on steep gradients use a pinion to engage a rack placed between the rails to climb slopes that normal friction-based railways cannot manage.
• Valves & Actuators: Used in pipelines and other industrial systems to convert the linear motion of an actuator into the rotational motion needed to open or close a valve.
