Pneumatic cushion seals

Pneumatic cushion seals are specialized components within pneumatic cylinders that provide a controlled method for decelerating the piston as it reaches the end of its stroke. This mechanism prevents the piston from slamming into the cylinder cap, thereby reducing noise, absorbing impact shock, and protecting the cylinder components and associated machinery from damage.
Function and Design
Cushioning is essential in pneumatic systems, especially when moving large masses at high speeds, where kinetic energy needs to be safely dissipated.
Controlled Deceleration: The core function is to manage the momentum of the moving load. As the piston approaches the end cap, a projection (often a "cushion spear" or "cushion ring") enters a small bore in the end cap.
Flow Restriction: This action traps the remaining air in the cylinder and forces it to exhaust through a small, restricted orifice, rather than the main port. The restricted airflow creates backpressure that acts as an air spring, gently slowing the piston.
Adjustability: The amount of air restriction is often controlled by an adjustable needle valve, allowing the user to fine-tune the cushioning effect for specific loads, speeds, and pressures.
Check Valve: A dedicated seal or integrated check valve allows for the free flow of compressed air during the reverse stroke to ensure a quick and efficient start of the piston's return journey.
Acoustic and Mechanical Protection: The primary benefit is a quieter operation and increased lifespan of the entire system by mitigating mechanical stress.
Types and Materials

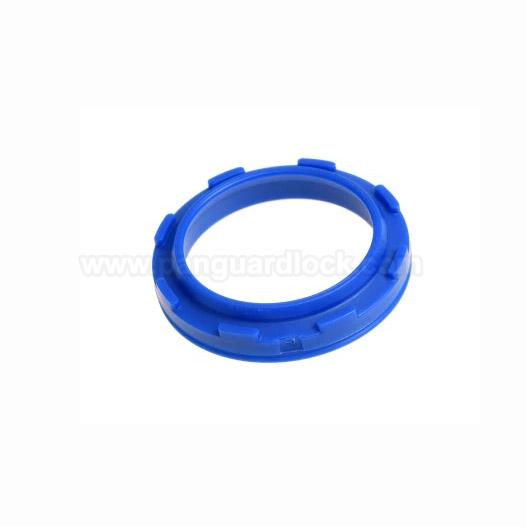

Cushion seals themselves are usually elastomeric or polymer components designed to seal the cushioning bore and facilitate the check valve function.
U-Cup Seals: Simple U-cup type seals are often used in the end cap to seal the bore the cushion spear enters.
Integrated Check Valve Designs: More advanced designs integrate the check valve functionality directly into the profile of the cushion seal, simplifying cylinder construction.
Polyurethane (PU): A very common material due to its excellent wear resistance, elasticity, and durability, suitable for the dynamic movements in pneumatic systems.
Nitrile Rubber (NBR): A reliable, general-purpose elastomer used in many standard pneumatic applications.
PTFE (Polytetrafluoroethylene): Used in applications requiring very low friction or the ability to run dry without lubrication.
Common Applications
Pneumatic cushion seals are widely used in factory automation and manufacturing where components are moved quickly and reliably.
Factory Automation: Employed in pick-and-place systems, sorting lines, and assembly machines to ensure smooth, repeatable operations.
Packaging Machinery: Used extensively in equipment for filling, sealing, and moving products to prevent jarring and damage.
Material Handling: Utilized in conveyor systems and robotic arms to manage the momentum of loads and reduce impact.
Automotive Manufacturing: Found in production lines for smooth operation of various pneumatic tools and systems.
General Industrial Automation: Essential for any pneumatic system where the piston cycles rapidly and smoothly to its end stops.
