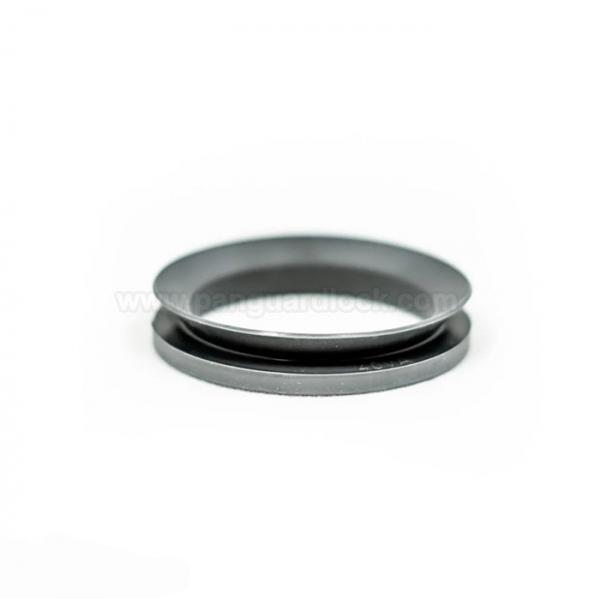

Pneumatic V-Ring Seal

Pneumatic V-ring seals are all-rubber, flexible seals used primarily in rotary motion applications as an exclusion seal to prevent the ingress of dirt, dust, water, and other contaminants into machinery components like bearings and gearboxes. Unlike traditional V-packing sets used in reciprocating systems, these V-rings are designed for non-pressurized environments and seal axially against a stationary counterface while rotating with the shaft.
Function and Design
The V-ring is a simple yet effective component that extends the lifespan of internal parts by acting as a dynamic barrier.
Axial Sealing: The seal has a V-shaped lip that rotates with the shaft and exerts a light, axial contact pressure against a stationary counterface (such as a bearing housing, washer, or metal casing of an oil seal).
Centrifugal Force: As the shaft speed increases, centrifugal force causes the sealing lip to slightly lift off the counterface, reducing friction and heat generation. During this "lift-off" phase, the V-ring continues to act as a dynamic slinger, actively deflecting contaminants away from the seal area.
Contaminant Exclusion: The primary function is exclusion, keeping environmental debris out while simultaneously helping to retain internal lubricants like grease.
Tolerance and Misalignment: The flexible nature and design of V-rings allow them to accommodate a degree of shaft misalignment and eccentricity without compromising sealing performance, which simplifies installation and system design.
Pressure Limitation: V-rings are designed for non-pressurized environments and are not suitable for sealing high pressure. They are typically used where the pressure is near zero.
Materials
Material selection is crucial to ensure compatibility with environmental conditions and temperature ranges.
Nitrile Rubber (NBR): A common, general-purpose material offering good resistance to oils and fuels and a wide temperature range, typically from -30°C to 100°C.
Fluoroelastomer (FKM/Viton): Provides superior resistance to high temperatures and a broad range of aggressive chemicals, suitable for more demanding environments.
EPDM (Ethylene Propylene Diene Monomer): Offers excellent resistance to water, steam, ozone, and UV radiation, making it a good choice for outdoor applications.
PTFE (Polytetrafluoroethylene): Used in applications requiring extreme temperature or chemical resistance and very low friction.
Common Applications
V-ring seals are widely used in a variety of industries where protection from contaminants is essential.
Electric Motors: Protects bearings from dust, dirt, and moisture, ensuring consistent performance and longevity.
Gearboxes and Pumps: Used as an auxiliary seal to shield primary radial shaft seals from contamination in gearboxes and pump drives.
Agricultural and Construction Machinery: The robust design is ideal for protecting rotating components in harsh outdoor environments with high levels of mud, dust, and water.
Industrial Fans and Conveyors: Their low friction and high-speed capability make them suitable for fans, blowers, and conveyor systems that operate in dusty conditions.
Machine Tools: Protects bearings and critical areas from chips, coolants, and oils.
