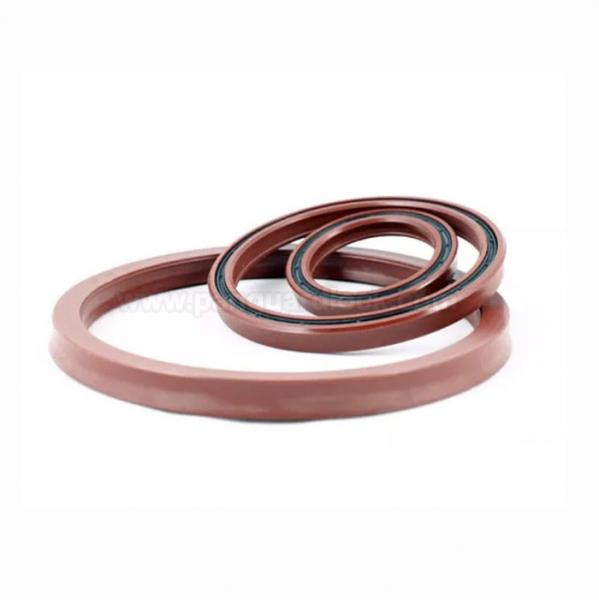

Pneumatic Rod Seals

Pneumatic rod seals are vital components in pneumatic cylinders, installed in the cylinder head to prevent compressed air from leaking out of the system along the piston rod. They also work in tandem with wiper seals to stop external contaminants like dirt and dust from entering the cylinder, ensuring efficient and reliable operation.
Function and Design
Pneumatic rod seals manage the pressure difference between the high-pressure interior of the cylinder and the low-pressure exterior (atmosphere) during the dynamic, reciprocating movement of the rod.
Pressure Containment: The primary function is to maintain air pressure within the cylinder to ensure the effective conversion of pneumatic power into linear motion.
Contamination Control: They are a critical barrier against environmental debris. While a separate wiper seal is typically the first line of defense, the rod seal provides a secondary protective layer.
Low Friction Design: Unlike hydraulic seals that rely on an oil film for lubrication and can tolerate higher friction, pneumatic systems prioritize high speed and smooth movement. Rod seals are designed with minimal contact area and specific low-friction materials to reduce "stiction" (static friction that must be overcome to start movement) and ensure consistent operation.
Lubrication Management: Many modern pneumatic systems operate on dry, non-lubricated air. The seals must be made of self-lubricating materials to function correctly and prevent premature wear without an oil film.
Materials
Material selection is paramount for compatibility with the air supply (lubricated or non-lubricated), temperature, and pressure requirements.
Polyurethane (PU): A common and versatile material, known for excellent abrasion resistance, toughness, and low friction in both lubricated and non-lubricated systems.
PTFE (Polytetrafluoroethylene): Ideal for high-speed, lube-free applications due to its extremely low coefficient of friction and wide temperature range. PTFE seals often use an energizer (like an O-ring) to provide sufficient sealing force at low pressures.
Nitrile Rubber (NBR): A general-purpose elastomer used in standard, lubricated systems.
Fluoroelastomer (FKM/Viton): Used in applications requiring higher heat tolerance or chemical resistance than NBR can provide.
Common Applications
Pneumatic systems, and their associated rod seals, are widely used across various industries where speed, cleanliness, and simple automation are desired.
Factory Automation: Employed in pick-and-place systems, sorting mechanisms, and assembly lines within manufacturing facilities.
Packaging Machinery: Used extensively in equipment for filling, sealing, and moving products.
Robotics: The speed and control of pneumatic cylinders make them suitable for certain robotic movements.
Medical Equipment: Found in hospital beds, dental chairs, and other medical devices where clean, reliable operation is important.
Food Processing: Due to the ability to operate lube-free and maintain cleanliness, they are used in food handling and processing machinery.
