Pneumatic Piston Seals

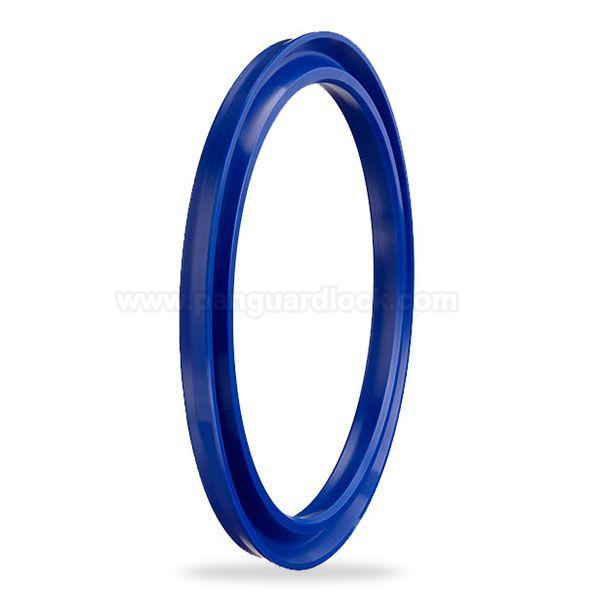

Pneumatic piston seals are components in pneumatic cylinders designed to seal the pressure on one side of the piston to convert compressed air power into linear motion. They create a barrier between the piston and the cylinder bore to ensure maximum system efficiency and prevent air from leaking past the piston.
Function and Design
Pneumatic seals differ from hydraulic seals primarily because compressed air is more difficult to seal than fluid due to the air's compressibility and viscosity.
Pressure Conversion: The main function is to contain the compressed air, allowing pressure to build up on one side of the piston to drive the rod in a controlled direction.
Minimal Friction: In pneumatic systems, minimizing friction is crucial for smooth, high-speed operation. Pneumatic seals are typically designed with smaller contact areas and specific materials to achieve this, unlike hydraulic seals which can tolerate higher friction due to the self-lubricating nature of hydraulic fluid.
Lubrication Management: While some pneumatic systems use lubricated air, many operate "lube-free." The seals must be able to operate effectively without external lubrication, which necessitates self-lubricating materials like PTFE or low-friction polyurethane.
Single vs. Double Acting: Piston seals are used in both single-acting cylinders (pressure from one side only, with a spring return) and double-acting cylinders (pressure from both sides to drive movement in both directions).
Materials
Material selection is key to achieving low friction, durability, and compatibility with the air supply (lubricated or non-lubricated).
Polyurethane (PU): A common and versatile material for pneumatic seals, known for excellent abrasion resistance, toughness, and low friction in both lubricated and non-lubricated systems.
PTFE (Polytetrafluoroethylene): Ideal for high-speed, lube-free applications due to its extremely low coefficient of friction. PTFE seals are often part of an assembly that includes an energizer O-ring.
Nitrile Rubber (NBR): A general-purpose elastomer used in standard, lubricated systems, offering good all-around performance and cost-effectiveness.
Fluoroelastomer (FKM/Viton): Used in applications requiring higher heat tolerance or chemical resistance than NBR can provide.
Common Applications
Pneumatic systems are widely used in applications where high speed, cleanliness, and simple automation are required.
Factory Automation: Employed in pick-and-place systems, sorting mechanisms, and assembly lines.
Packaging Machinery: Used extensively in equipment for filling, sealing, and moving products.
Robotics: The speed and control of pneumatic cylinders make them suitable for certain robotic movements.
Medical Equipment: Found in hospital beds, dental chairs, and other medical devices where clean operation is important.
Food Processing: Due to the ability to operate lube-free and maintain cleanliness, they are used in food handling and processing machinery.
