Pneumatic O-Rings

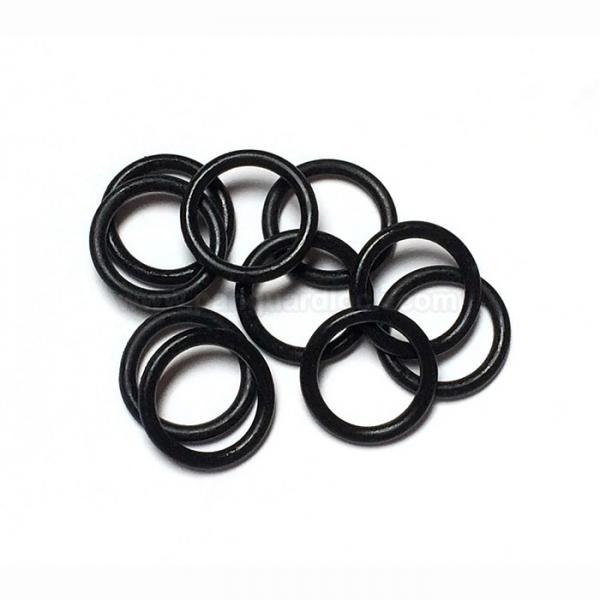

Pneumatic O-rings are circular, elastomeric gaskets used in pneumatic systems to prevent compressed air leaks, maintain system pressure, and seal connections in various components like cylinders and valves. They function by being compressed within a groove between two mating parts, forming a highly effective, cost-efficient, and reliable seal.
Function and Design
O-rings in pneumatic systems work based on a simple yet effective principle.
Compression Seal: The O-ring is installed in a precisely machined groove and slightly compressed between two surfaces. This initial squeeze creates a barrier that fills any microscopic gaps.
Pressure Energized: When compressed air pressure is applied to the system, it pushes the O-ring against the opposing surfaces and the groove walls, which increases the sealing force. This self-energizing property makes O-rings effective over a wide range of pressures.
Static and Dynamic Use: O-rings can be used for both static applications (sealing non-moving parts like flanges or fittings) and dynamic applications (sealing moving parts like pistons and rods in cylinders).
Low Friction Requirements: Unlike hydraulic systems which are self-lubricating, many pneumatic systems run on dry air. Therefore, pneumatic O-rings are often made with low-friction or self-lubricating materials (e.g., PTFE or specific polyurethanes) and are designed with less initial deformation to minimize friction and wear.
Materials
Selecting the correct material is critical for compatibility with the air supply (lubricated or non-lubricated), temperature, and pressure requirements.
Nitrile Rubber (NBR/Buna-N): A common, general-purpose material offering good resistance to petroleum-based oils used in lubricated systems. It has a functional temperature range typically from -30°C to 120°C.
Polyurethane (PU): Known for excellent abrasion resistance and mechanical strength, polyurethane O-rings are often used in pneumatic fittings and dynamic applications.
PTFE (Polytetrafluoroethylene): Ideal for high-speed, lube-free applications due to its extremely low coefficient of friction and wide temperature range. It is often part of a composite seal assembly with an energizer O-ring.
EPDM (Ethylene Propylene Diene Monomer): Offers excellent resistance to water, steam, and ozone/UV radiation, making it suitable for outdoor or wet applications. It is not compatible with petroleum oils.
Fluoroelastomer (FKM/Viton): Provides excellent resistance to high temperatures and a broad range of aggressive chemicals, suitable for more demanding environments.
Common Applications
O-rings are indispensable components across various industries utilizing pneumatic power.
Factory Automation: Employed in pick-and-place systems, sorting mechanisms, and assembly lines.
Packaging Machinery: Used extensively in equipment for filling, sealing, and moving products to ensure smooth and precise motion.
Robotics: The speed and control offered by pneumatic cylinders with O-rings make them suitable for certain robotic movements.
Medical Equipment: Found in hospital beds, dental chairs, and other medical devices where clean operation and precise movement are important.
Food Processing: Due to the ability to operate lube-free and maintain cleanliness, they are used in food handling and processing machinery.
Compressors and Valves: O-rings seal various internal components in air compressors and directional control valves to prevent air leakage.
