Multi-Spring Mechanical Seals

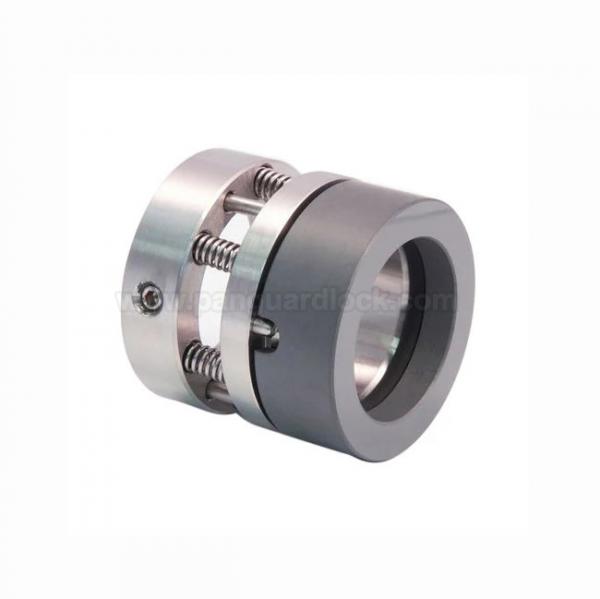

Multi-spring mechanical seals are advanced sealing solutions used in pumps and other rotating equipment, characterized by a design that utilizes multiple small springs distributed around the shaft instead of a single, large coil spring. This design provides uniform face loading, high reliability, and compactness for demanding industrial applications.
Key Features and Benefits
Uniform Face Loading: The primary advantage of a multi-spring design is the even distribution of spring pressure across the seal faces. This ensures consistent contact, minimizes face wear, and provides a superior, more stable seal compared to single-spring designs.
Compact Axial Length: By using multiple smaller springs, these seals achieve a shorter axial length, making them suitable for use in equipment where gland space is limited.
High Reliability: The even loading and robust design contribute to a longer service life and fewer unexpected failures or leaks.
Pressure Balancing: Multi-spring seals are often designed to be "balanced," meaning the pressure on the seal faces is optimized for high-pressure applications, reducing heat generation and extending life.
Reduced Spring Distortion: The smaller springs are less susceptible to tangling or distortion under high speeds or vibration compared to a single, long coil spring.
Common Types and Construction
Multi-spring mechanical seals come in various configurations, often as component seals (installed piece by piece) or pre-assembled cartridge units for easier installation:
Pusher Designs: The standard configuration where an O-ring or wedge secondary seal moves along the shaft to maintain face contact as wear occurs.
Balanced vs. Unbalanced: Unbalanced multi-spring seals are used for moderate pressure applications, while balanced designs are standard for high-pressure systems to manage face pressure and heat effectively.
Metal Bellows (Sometimes Multi-Spring): While most metal bellows seals use the bellows' inherent flexibility as a spring, some designs may integrate multiple springs for specific load characteristics.
Applications
Multi-spring mechanical seals are ideal for demanding applications requiring high performance and reliability:
Chemical and Petrochemical Processing: For sealing corrosive, toxic, or hazardous fluids in pumps and mixers.
Oil and Gas: In refineries, pipelines, and offshore platforms for handling various hydrocarbons and process fluids under high pressure.
Power Generation: Used in boiler feed pumps and other critical equipment operating under high temperature and pressure.
General Industrial Use: Found in pumps and mixers across various manufacturing processes requiring high durability and reliable sealing of oils, chemicals, and solvents.
