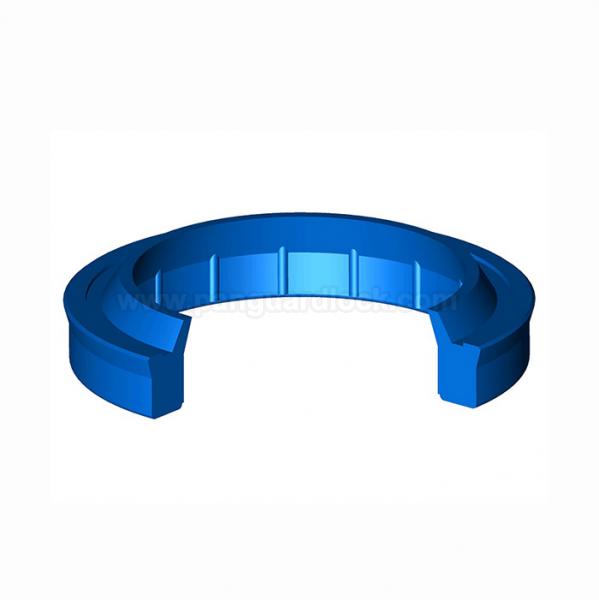

Lip Rod Wiper Seals

Lip rod wiper seals (also known as scraper or excluder seals) are positioned in the cylinder head of hydraulic and pneumatic systems to scrape contaminants (dirt, dust, moisture) from the piston rod surface as it retracts into the cylinder. This protective function prevents internal system damage and premature failure of the primary rod seal.
Design and Function
The core design of a lip rod wiper seal focuses on creating an effective external barrier while managing lubrication.
Wiping Lip: The seal features one or more lips with a smaller internal diameter than the rod itself, ensuring a tight interference fit and effective scraping action.
Contamination Exclusion: As the rod retracts, the lip physically removes foreign matter, preventing it from entering the system and damaging sensitive internal components.
Film Management: In hydraulic systems, the rod seal leaves a thin film of oil on the extending rod for lubrication. An effective wiper manages this film, allowing just enough for lubrication while wiping off excess on the return stroke to prevent external leakage.
Static Sealing: The outer diameter of the wiper seal provides a static seal within the cylinder gland, preventing moisture or particles from entering the system around the outside of the seal.
Single Lip vs. Double Lip
Wiper seals come in single-lip and double-lip designs to suit different environmental and performance needs.
Feature Single-Lip Wiper Seals Double-Lip Wiper Seals
Wiping Action Most aggressive, offering superior dirt removal for heavily contaminated environments. Provides excellent primary wiping action plus a secondary internal lip for additional protection and lubrication regulation.
Lubrication Film Can be designed with a rounded lip for pneumatic applications to maintain a necessary oil film, or a straight/beveled lip for aggressive wiping. The internal lip helps regulate the oil film, allowing excess fluid to return to the system, resulting in a very dry rod.
Pressure Traps Less likely to trap pressure between the wiper and rod seal; some designs have pressure-relief ridges. Can potentially trap pressure between the two lips; requires a complementary rod seal with pressure-relief features or a vent in the housing.
Complexity & Cost Simpler design, generally more cost-effective and easier to install. More complex to install and generally more expensive, but offers superior performance in harsh conditions.
Materials
Materials are selected for durability, abrasion resistance, and chemical compatibility.
Polyurethane (PU): The most common and versatile material, known for excellent abrasion resistance, high tensile strength, and toughness.
Nitrile Rubber (NBR): A general-purpose elastomer offering good resistance to petroleum-based fluids in lubricated systems.
Fluoroelastomer (FKM/Viton): Provides excellent resistance to high temperatures and a broad range of aggressive chemicals and synthetic fluids.
PTFE (Polytetrafluoroethylene): Used in extreme temperature or high-speed applications for its very low friction and chemical inertness.
Metal Casing: Some heavy-duty wipers integrate a steel outer ring for structural integrity and secure press-fit installation.
Common Applications
Lip rod wiper seals are essential in any application where cylinders are exposed to external environments.
Construction Equipment: Used extensively in excavators, loaders, and bulldozers to protect components from mud, dirt, and water.
Agricultural Machinery: Shields cylinders on tractors and harvesters from soil, dust, and plant matter.
Mining and Heavy Industry: Essential for machinery operating in abrasive and dirty conditions.
Automotive Systems: Employed in certain systems to prevent contaminant ingress, enhancing safety and reliability.
