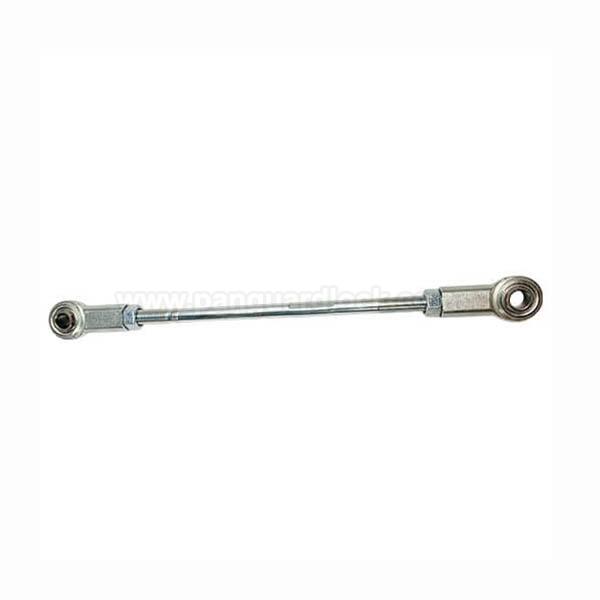

Linkage Assemblies

Linkage assemblies are basically collections of stiff bars (links) connected by hinges or pivot points (joints). They are the foundational mechanisms that allow machines to move in specific, controlled ways.
Here is the simple breakdown of what they do:
• A System of Rods: Think of them as a set of connected sticks. When you push one stick, the others are forced to move in a predetermined pattern.
• Changes Movement: Their primary job is to translate one type of motion into another. For example, they turn a spinning wheel into a steady push-pull motion, like how a train’s wheels work.
• Guides the Path: The way they are designed dictates the exact path a moving part will take, ensuring accuracy in things like car suspensions or robotic grippers.
• Mechanical Advantage: They can multiply the force you put in; a small push can result in a very powerful output, like in a pair of pliers or bolt cutters.
