Linear guide bearings

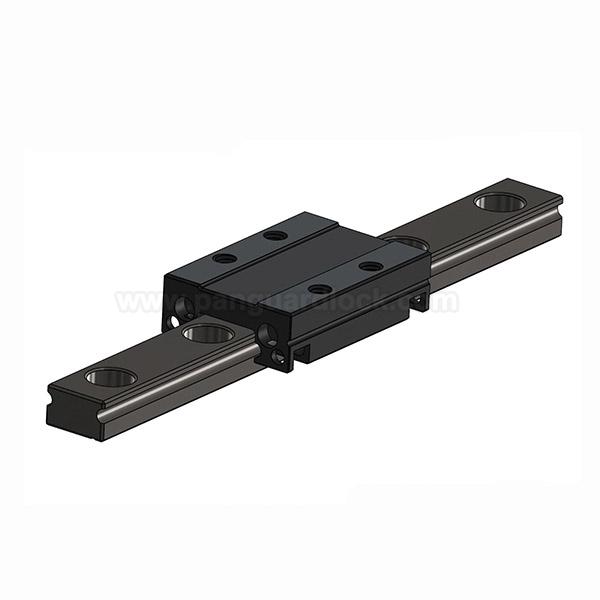

Linear guide bearings, also known as linear guideways or slide rails, are mechanical components designed to facilitate precise, low-friction linear (straight-line) motion while supporting significant loads. They consist of a moving carriage (block) and a stationary rail, and are indispensable in high-accuracy machinery like CNC machines and robotics.
Key Features and Benefits
High Precision and Accuracy: Linear guides are built to tight tolerances, ensuring highly accurate and repeatable movement for demanding applications.
Low Friction: Utilizing rolling elements (balls or rollers) or a sliding surface greatly reduces friction, leading to smoother motion, less wear, and lower energy consumption.
High Load Capacity and Rigidity: They are designed with robust rails and bearing mechanisms to support heavy loads in various directions (radial, axial, and moment), while maintaining high stiffness to minimize deflection and vibration.
Versatility: Available in numerous sizes, types, and configurations to suit a wide array of industrial and consumer applications.
Long Travel Distance: Many designs, particularly those with recirculating rolling elements, allow for virtually unlimited stroke lengths, limited only by the length of the guide rail.
Common Types
Linear guide systems are generally categorized by their underlying motion mechanism.
Rolling Element Guides: These use balls or rollers to minimize friction and include:
Ball Bearings/Bushings: The most common type, offering smooth, low-friction motion and high precision for moderate loads. They are often used in 3D printers and automation systems.
Roller Bearings: Utilize cylindrical or tapered rollers for increased contact area, designed for heavier loads and greater rigidity, often found in large machine tools.
Profiled Rail Guides (Square Rails): Feature precision-ground rails and bearing blocks with recirculating rolling elements, providing high load capacity and versatility for precision applications like CNC machines.
Round Rail Guides: A cost-effective option for lighter loads and less demanding applications, such as sliding doors and drawers.
Plain (Sliding) Guides: These rely on sliding contact between two surfaces without rolling elements.
Features: They handle high loads and shock well, tolerate contamination, and are cost-effective. However, they have higher friction and are better suited for lower speeds and less precise applications.
Types: Include box-way and dovetail slides for heavy-duty, large machine tools, and sleeve bearings made of materials like bronze, plastic, or self-lubricating composites for lighter applications.
Applications
Linear guide bearings are essential components across various industries:
Manufacturing and Automation: Integral to CNC machines, industrial robots, and automated assembly lines for precise, repeatable motion.
Medical and Laboratory Equipment: Used in MRI and CT scanners, surgical robots, and diagnostic equipment that require smooth, accurate movement.
Transportation: Found in applications such as automated doors on trains and buses, and aircraft seat adjustment mechanisms.
3D Printing: Essential for guiding the print head along the X, Y, and Z axes with accuracy and precision.
