Linear Plain Bearings

Linear plain bearings, also known as sleeve linear bearings or linear bushings, are components that facilitate smooth, straight-line sliding motion along a shaft or rail. They achieve this using a sliding interface (without rolling elements) and a self-lubricating surface, making them ideal for high-load, dirty, or washdown environments.
Key Features and Benefits
Self-Lubricating and Maintenance-Free: Many linear plain bearings are made from self-lubricating materials (like PTFE-based liners or specific polymers) that transfer microscopic amounts of material to the shaft, eliminating the need for external lubrication systems and reducing maintenance costs and downtime.
High Load Capacity: Due to the large contact area (surface contact rather than point or line contact), plain bearings can handle heavy static, dynamic, and shock loads effectively.
Contamination Tolerance: The sliding surface can often embed small dirt particles without damaging the shaft or the bearing, making them highly tolerant of dirty or dusty environments like woodworking facilities, where rolling-element bearings often fail.
Quiet Operation and Vibration Damping: The sliding motion and material properties help to absorb and dampen vibrations and noise, resulting in significantly quieter operation compared to rolling bearings.
Corrosion and Chemical Resistance: Plain linear bearings made from plastic or stainless steel are highly resistant to corrosion and various chemicals, making them suitable for marine, food processing, or medical applications.
Cost-Effective: Generally, these bearings have a lower initial cost and simpler design compared to rolling element systems, which can lead to overall cost savings.
Common Types and Materials
Linear plain bearings are available in various materials and designs to suit application-specific needs:

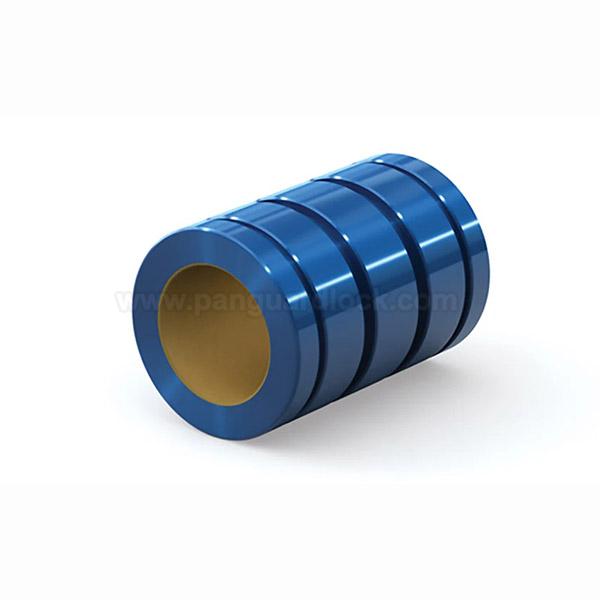

Metal-Polymer Composites: These feature a metal shell (aluminum, steel, or stainless steel) with a bonded, self-lubricating liner (e.g., FrelonGold® or PTFE-based materials). They offer high strength with a low-friction interface.
Solid Polymer Bearings: Made from engineered plastics like Nylon, Acetal, or PEEK, often with internal lubricants. They are lightweight, non-corrosive, and ideal for cleanroom or submerged applications.
Sintered Metal Bearings: Porous metal (bronze or iron) bearings impregnated with oil, providing continuous self-lubrication for moderate load and speed applications.
Box-way and Dovetail Slides: Heavy-duty industrial slide systems that use a large, full-contact sliding surface, offering superior rigidity and vibration resistance for heavy CNC machines.
Applications
Linear plain bearings excel in environments where the benefits of sliding contact outweigh the higher precision and speed of rolling elements:
Woodworking Industry: Used in saws and sanders, as they resist jamming from sawdust and withstand high vibration.
Food and Medical Equipment: Employed in machinery requiring frequent washdowns and high hygiene standards where grease or oil cannot be present.
Automotive and Furniture: Found in car seat slides, drawers, and steering systems for quiet, reliable, and low-maintenance operation.
Construction and Agriculture: Used in heavy machinery, excavators, and presses where high impact loads and dirty environments are common.
