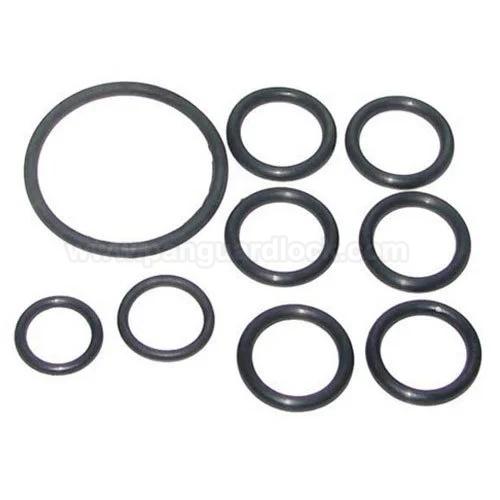

Hydraulic O-Rings

Hydraulic O-rings are circular, elastomeric gaskets that are essential for preventing fluid leaks, maintaining system pressure, and blocking contaminants in hydraulic systems. They work by being compressed into a groove between two mating parts, forming a highly effective and cost-effective seal.
Function and Design
O-rings are highly versatile and widely used due to their simple but effective sealing mechanism.
Compression Seal: The O-ring is seated in a groove and slightly deformed when components are assembled. This mechanical compression creates the initial seal.
Pressure Energized: As hydraulic pressure is applied, the fluid pushes the O-ring against the opposing surface and the groove wall, increasing the sealing force and enhancing the seal's effectiveness under high pressure.
Static and Dynamic Use: O-rings are used in both static applications (sealing non-moving parts like fittings and flanges) and some dynamic applications (sealing reciprocating pistons or rods), though dynamic use requires careful material selection and design to manage friction and wear.
Extrusion Prevention: At very high pressures, the O-ring material can be forced into the small clearance gap between the mating metal surfaces (extrusion). In such cases, a harder back-up ring is often used in conjunction with the O-ring to prevent this failure.
Materials
The choice of O-ring material is critical for compatibility with hydraulic fluids, temperature ranges, and operating pressures.
Nitrile Rubber (NBR/Buna-N): The most common material in hydraulic systems, offering excellent resistance to petroleum-based oils, fuels, and greases.
Fluoroelastomer (FKM/Viton): Provides superior resistance to high temperatures and a broader range of aggressive chemicals and synthetic fluids, making it ideal for demanding environments like aerospace and chemical processing.
Polyurethane (PU): Known for high mechanical strength, excellent abrasion resistance, and toughness. It is often used in hydraulic fittings and cylinders.
EPDM (Ethylene Propylene Diene Monomer): Offers excellent resistance to water, steam, ozone, and some specialized fluids like phosphate-ester hydraulic fluids, but is not compatible with petroleum oils.
Common Applications
O-rings are indispensable components found across numerous industries.
Fittings and Connections: Used extensively in O-Ring Boss (ORB) and O-Ring Face Seal (ORFS) fittings to provide leak-proof connections in hoses and pipes.
Hydraulic Cylinders: Function as piston and rod seals (in specific designs) or static seals in cylinder heads and bases.
Pumps and Valves: Ensure leak-free operation in various pumps and directional control valves within hydraulic systems.
Heavy Machinery: Essential for the reliable operation of construction, agricultural, and mining equipment that operate under high pressures and in challenging environmental conditions.
