Guide Rings

Guide rings, also known as wear rings or guide bands, are non-metallic components in hydraulic and pneumatic systems that guide the piston and rod and prevent direct metal-to-metal contact between moving parts. By absorbing lateral forces (side loads), they protect the primary seals from premature failure and minimize wear on the cylinder's metallic surfaces.
Function and Design
The main function of guide rings is to act as radial bearings within the cylinder assembly.
Prevent Metal Contact: They create a physical buffer, ensuring the piston and rod move smoothly within the cylinder bore or head without the metal surfaces touching. This prevents scoring and abrasion.
Absorb Lateral Forces: Guide rings are designed to accommodate transverse forces that act on the system, which helps maintain alignment and prevents the seals from being crushed or damaged by uneven pressure distribution.
Enhance Seal Life: By keeping the moving components concentric and properly aligned, guide rings ensure the main rod and piston seals operate under optimal conditions, significantly extending their lifespan.
Installation: Most guide rings are supplied in a slotted or split configuration (straight cut, angled cut, etc.) to facilitate easy installation and compensate for thermal expansion during operation.
Materials
Guide rings are typically made from non-metallic, self-lubricating materials to reduce friction and eliminate the need for additional lubrication.
Polyamide (PA): Glass-fiber-reinforced polyamide is a common, cost-effective choice for medium to heavy-duty applications due to its high mechanical strength, wear resistance, and ability to withstand heavy side loads.
PTFE (Polytetrafluoroethylene): Used for applications requiring very low friction, high chemical resistance, and a wide temperature range. PTFE guides typically have lower load-bearing capacity and are often filled with materials like bronze or carbon to improve strength and wear resistance.

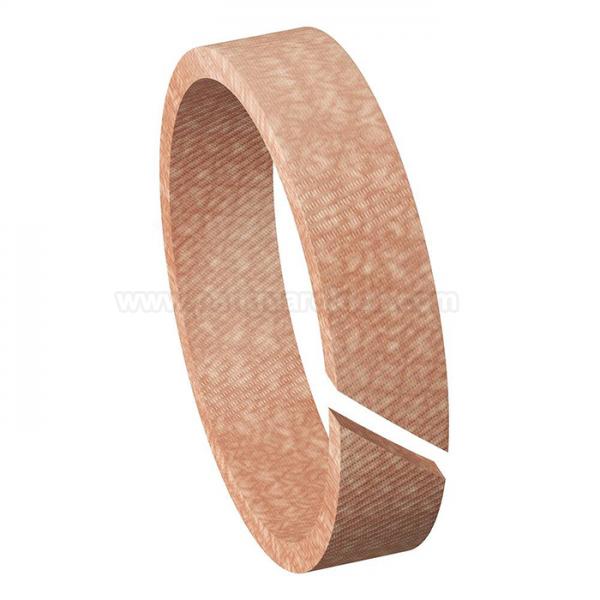

Phenolic Resin with Fabric Insert: Consists of cotton fabric laminated with thermoset phenolic resin. These guides are suitable for medium to heavy loads and are almost self-lubricating, though generally not recommended for very high stroke speeds.
Polyoxymethylene (POM): Also known as acetal, this thermoplastic offers a good balance of high mechanical strength, toughness, and wear resistance.
Applications
Guide rings are essential in almost all applications involving linear hydraulic and pneumatic motion.
Construction and Agricultural Machinery: Widely used in excavators, bulldozers, and tractors where heavy side loads and demanding conditions are common.
Industrial Machinery: Found in presses, molding machines, and automation systems to ensure precise and smooth movement of components.
Aerospace and Mining: Employed in critical systems that require reliable operation under extreme conditions and heavy loads.
General Purpose Cylinders: Standard components in most everyday hydraulic and pneumatic cylinders to protect the moving parts and sealing system.
