Gear racks

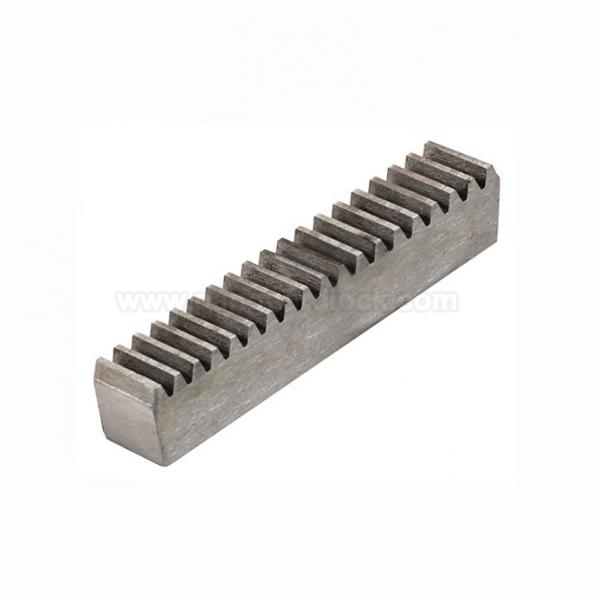

Gear racks are a type of linear actuator made from a straight bar or rod with teeth machined along one surface to mesh with a rotating gear called a pinion. They are used to convert rotational motion into linear motion (and vice-versa) in power transmission systems, offering a simple and effective mechanism for controlled linear movement.

Design and Function
The function of a gear rack system is based on the interaction between the linear rack and the rotating pinion gear.
Rotational to Linear Motion: As the pinion gear rotates, its teeth engage with the rack's teeth, moving the rack in a straight line. The distance the rack travels is directly proportional to the rotation of the pinion.
Linear to Rotational Motion: Conversely, moving the rack linearly can cause the pinion to rotate, although this is less common for power input.
Gear Teeth Profiles: The teeth typically follow the involute profile, the standard for gears, to ensure smooth and consistent engagement.
Module/Pitch: Like all gears, gear racks are specified by their module (metric) or pitch (imperial), which determines the size and spacing of the teeth and ensures proper meshing with the corresponding pinion.
Types of Gear Racks
Gear racks are available in various configurations to suit different application needs.
Straight Teeth Racks: The most common type, offering a straightforward conversion of motion and generally easier to manufacture.
Helical Teeth Racks: Feature angled teeth that provide a smoother, quieter operation due to continuous tooth engagement and can handle higher loads and speeds, although they introduce axial (thrust) forces that need to be managed.
Flexible Racks: Made from plastic or other flexible materials, used in applications requiring curved or non-linear motion.
Materials
Materials are selected based on strength requirements, operating conditions (speed, load), and the environment.
Steel (e.g., C45, Alloy Steels): The most common choice, offering high strength, durability, and load capacity. They are often heat-treated to increase hardness and lifespan and may be coated for corrosion resistance.
Stainless Steel: Used in corrosive environments (e.g., food processing, marine, chemical industries) for its resistance to rust and chemicals.
Cast Iron: Used for large, heavy-duty applications where cost may be a factor, and weight is not a primary concern.
Plastics (e.g., Nylon, Acetal): Lightweight and corrosion-resistant, used for low-load applications where noise reduction or self-lubrication is important.
Common Applications
Gear racks are widely used in systems requiring controlled and precise linear movement.
Steering Systems (Rack and Pinion): The primary use in most cars, translating the rotational movement of the steering wheel into the linear movement required to turn the wheels.
CNC Machines: Providing precise and repeatable linear motion control for cutting heads, print beds, and worktables in manufacturing equipment.
Automated Gates and Doors: Driving the movement of sliding gates and automated access systems.
Lifting Mechanisms: Used in lifting jacks and other mechanisms to convert motor rotation into vertical lifting force.
Robotics: Employed in linear actuator systems for robotic arms and gantry systems.
