Flange Couplings

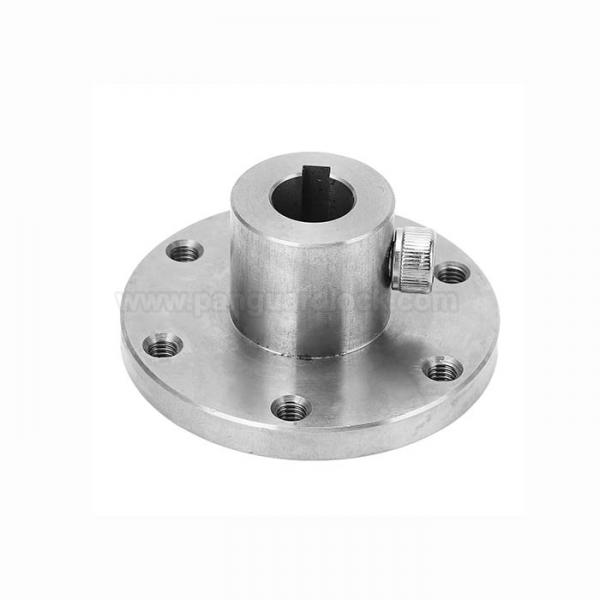

A flange coupling is a robust mechanical device used to connect two shafts or pipes end-to-end to transmit torque and power. It consists of two circular flanges, one mounted on the end of each shaft, which are then securely fastened together with a set of nuts and bolts to create a strong, often rigid, connection.
⚙️ Design & Function
Flange couplings provide a reliable and efficient way to link rotating components, ensuring precise alignment between the connected shafts. They are valued for their high load capacity and ability to transmit substantial torque without slippage. In piping systems, a gasket or seal is typically placed between the flanges to create a leak-proof joint capable of withstanding high pressure and temperature.
🛠️ Types of Flange Couplings
Several types of flange couplings exist to meet different operational and safety requirements:
• Unprotected Type: The nuts and bolts are exposed, which is suitable for controlled environments with little risk of contact with the rotating parts.
• Protected Type: The nuts and bolts are enclosed by a protective rim or flange to prevent accidental contact and enhance worker safety.
• Marine Type: The flanges are forged as an integral part of the shafts themselves and use tapered, headless bolts for a strong, compact connection suited for harsh, corrosive marine environments.
• Flexible Flange Coupling: While most are rigid, flexible variations use materials like rubber to accommodate slight misalignments and absorb shock and vibrations.
🏭 Applications
Flange couplings are used in many heavy-duty industrial applications due to their durability and ability to handle high loads.
• Industrial Machinery: Used in pumps, compressors, turbines, and conveyor systems to connect rotating components.
• Marine Engineering: Essential in ship propulsion systems to connect the engine's output shaft to the propeller shaft.
• Automotive Industry: Employed in drivetrain components, such as the connection between the transmission and the driveshaft.
• Piping Systems: Used in high-pressure systems to connect pipes, valves, and other equipment, allowing for easier maintenance and disassembly.
