Double-Lip Rod Wiper Seals

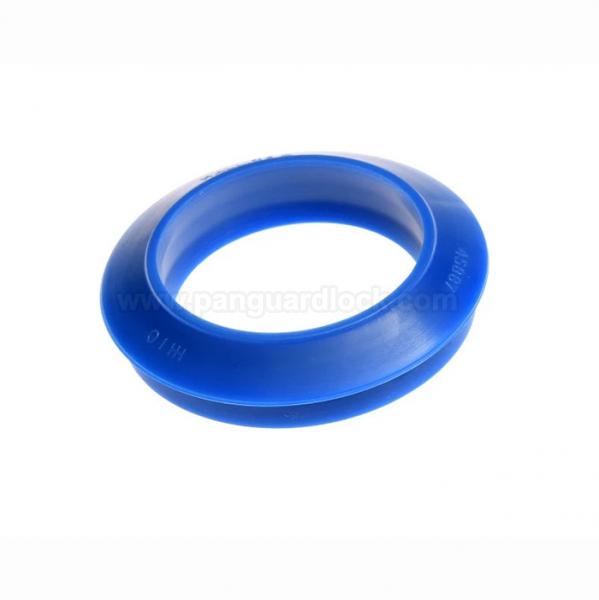

Double-lip rod wiper seals are hydraulic and pneumatic sealing components that are typically installed as the outermost seal in the cylinder head gland. They feature two distinct lips: a primary outer lip for aggressive scraping of external contaminants and a secondary inner lip that provides a light sealing action, which helps manage the lubricating film on the rod.
Function and Design
The dual-lip design provides enhanced protection and functionality compared to single-lip designs.
Superior Contamination Exclusion: The primary, aggressive outer lip is designed to effectively remove dirt, dust, mud, and other environmental contaminants from the piston rod surface as it retracts into the cylinder.
Secondary Sealing Action: The inner lip acts as a secondary barrier. In hydraulic systems, it helps to regulate the thickness of the oil film left by the main rod seal, ensuring the rod surface is left very dry on the return stroke and minimizing external leakage.
Protection for Internal Seals: By efficiently blocking foreign particles from entering the system, the double-lip wiper significantly extends the life of the main rod seal and other internal components like guide rings and piston seals.
Pressure Management Considerations: A potential issue with double-lip designs is the risk of trapping a small amount of fluid and pressure between the two lips. This can be mitigated by ensuring the main rod seal has built-in pressure-relief features or by incorporating a vent in the housing gland.
Materials
Materials are selected for high wear resistance, durability, and compatibility with system fluids and environmental conditions.
Polyurethane (PU): The most common material due to its exceptional abrasion resistance, high tensile strength, and toughness, making it ideal for the demanding environment of a wiper seal.
Nitrile Rubber (NBR): A reliable, general-purpose elastomer used in standard, lubricated systems, offering good all-around performance and cost-effectiveness.
Fluoroelastomer (FKM/Viton): Provides excellent resistance to high temperatures and a broad range of aggressive chemicals, suitable for more demanding applications.
PTFE (Polytetrafluoroethylene): Used in extreme temperature or high-speed applications for its very low friction and chemical inertness.
Metal-Cased Designs: Many double-lip wipers are encased in steel for robust installation and a secure static fit within the cylinder head.
Common Applications
Double-lip rod wiper seals are favored in environments where superior protection against harsh contaminants is necessary for reliable machinery operation.
Construction Equipment: Widely used in excavators, loaders, and bulldozers operating in muddy, dusty, and high-impact conditions.
Mining Machinery: Essential for heavy equipment exposed to abrasive materials and harsh environmental elements.
Agricultural Machinery: Protects cylinders on tractors, harvesters, and other farm equipment from soil, dust, and plant residue.
Waste Management: The robust design handles the challenging conditions in refuse collection and processing equipment, preventing ingress of aggressive media.
Industrial Hydraulics: Used in heavy presses and machinery to ensure longevity and reliability in demanding industrial settings.
