Clutches

Clutches are mechanical devices used to connect and disconnect power transmission between a driving component (like an engine or motor) and a driven component (like a gearbox or drive wheels) while they are in motion. They engage and disengage power by utilizing friction, electromagnetism, hydraulics, or mechanical interlocking to control the flow of rotational force (torque).

Function and Design
The core function of a clutch is to provide a controlled start-up, allowing the load to be brought up to speed smoothly, and to permit disconnection of the power source when required, such as when shifting gears or stopping the machine while the power source is still running.
Engagement: When the clutch is engaged, the driving and driven components are locked together (either through friction or a positive lock), allowing torque transmission.
Disengagement: When disengaged, the power flow is interrupted, and the driving component can spin freely from the driven component.
Types of Clutches
Clutches can be broadly categorized by their method of engagement:
Friction Clutches
These are the most common type, relying on the friction between two mating surfaces to transmit torque.

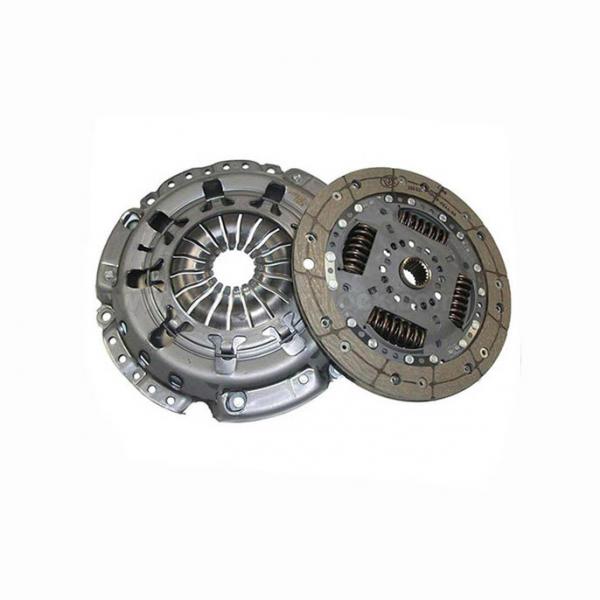

Plate Clutch (Single & Multi-plate): Consists of one or more plates (friction discs) that are pressed against flywheels or pressure plates. Multi-plate clutches are compact and used in applications like motorcycles and automatic transmissions.
Cone Clutch: Uses a conical friction surface to provide a larger contact area for the same diameter, which is efficient but more difficult to disengage and is now less common than plate clutches.
Centrifugal Clutch: Engagement is automatic and speed-dependent. Friction shoes are thrown outward by centrifugal force as the engine speed increases, engaging with an outer drum. Common in chainsaws, go-karts, and scooters.
Positive Engagement Clutches
These provide a rigid, mechanical lock, used where smooth engagement at high speeds is not required.
Jaw Clutch: Features interlocking teeth (jaws) that provide a robust connection, but must be engaged at very low or zero speed to prevent damage.
Actuated Clutches
These use external energy to engage or disengage the power transmission.
Electromagnetic Clutch: Uses an electric current to create a magnetic field that pulls the clutch plates together. Offers fast response times and remote control (e.g., automotive A/C compressors).
Hydraulic Clutch: Uses fluid pressure to engage the clutch, providing smooth, controlled engagement in applications like automatic transmissions and heavy machinery.
Common Applications
Clutches are indispensable in systems requiring controlled power management.
Automotive Industry: Essential for manual transmission vehicles, allowing the driver to change gears smoothly and bring the vehicle to a stop without stalling the engine.
Industrial Machinery: Used in presses, lathes, packaging machines, and conveyor systems to start, stop, or control the speed of operation.
Heavy Equipment: Employed in tractors, construction machinery, and military vehicles to manage engine power effectively in demanding conditions.
Lawn & Garden: Found in mowers and other equipment to engage/disengage blades and drives.
