Chains

Chain drive systems are a method of transferring mechanical power between two or more shafts using an endless loop of interconnected metal links (the chain) that mesh with toothed wheels called sprockets. This positive engagement ensures power is transmitted without slippage, making it highly efficient and reliable for a wide range of applications.
Design and Function
A chain drive system consists of three basic components: the chain, the driver sprocket, and the driven sprocket.
Power Transmission: When the driver sprocket rotates (powered by a motor or engine), its teeth engage with the links of the chain, pulling it and exerting mechanical force. This force causes the driven sprocket to rotate, transferring speed and torque to the connected machine.
Zero Slip: Unlike belt drives which rely on friction and can slip under heavy loads, chain drives provide a positive, zero-slip power transmission, ensuring a constant and precise speed ratio.
Efficiency and Versatility: Chain drives offer high mechanical efficiency (often exceeding 98%) and can be used for both short and relatively long distances between shafts.
Types of Drive Chains
Various types of chains are designed for specific uses beyond just power transmission.
Roller Chain (Bush Roller Chain): The most common type for power transmission, found in bicycles, motorcycles, and industrial equipment. It features inner and outer plates, pins, bushes, and rollers, with the rollers rotating to reduce friction with sprocket teeth.

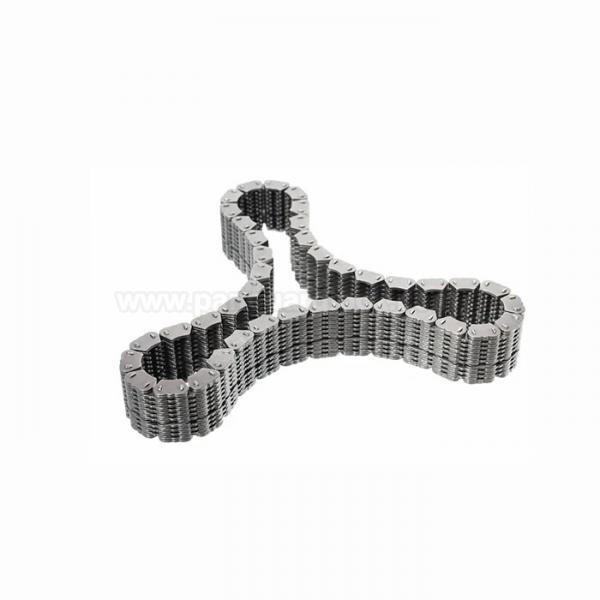

Silent Chain (Inverted Tooth Chain): Designed for high speeds and quiet operation, the links have the contour of sprocket teeth to ensure smooth meshing. Used in automotive engines (timing chains) and noise-sensitive industrial environments.
Leaf Chain: Consists of only pins and link plates, designed for lifting and counterbalancing applications rather than power transmission. It is used in forklifts and cranes and runs over sheaves for guidance.
Conveyor/Engineering Steel Chain: Built to handle heavy loads and tough environments (dirt, abrasives). These chains are used to move materials along a fixed path, often featuring attachments like buckets or hooks.
Common Applications
Chain drives are used across diverse industries due to their durability and efficiency.
Transportation: Widely used in bicycles and motorcycles to transmit power to the wheels.
Automotive: Employed as timing chains in engines to synchronize the camshaft and crankshaft rotations precisely.
Material Handling: Essential for conveyor systems, hoists, and elevators for moving various materials and heavy loads.
Industrial Machinery: Powering components in pumps, compressors, agricultural equipment, and manufacturing lines.
Key Considerations
Lubrication: Regular lubrication is crucial for minimizing friction, reducing wear, and extending the chain's lifespan.
Tension and Alignment: Proper chain tension must be maintained (often using a tensioner or idler wheels) to prevent sagging, noise, and premature wear. Precise alignment is also essential.
Polygon Effect: The rigid links moving around a circular sprocket can cause minor speed fluctuations, known as the polygon effect, which can result in vibration in some applications.
