Carbon steel plain bearings

Carbon steel plain bearings are robust, cost-effective, high-load capacity sliding bearings, often used with a thin lubricating film or self-lubricating liner to reduce friction and wear. They excel in high-load, low-speed, and shock-prone environments where rolling-element bearings might fail.
Key Features and Benefits
High Load Capacity: Plain bearings made with a carbon steel backing offer excellent mechanical strength and can support immense static and shock loads due to their large, continuous contact surface area.
Compact and Simple Design: They typically have a thin-walled, simple structure (often a sleeve or bushing) which saves space and simplifies machine design, making them lighter and more compact than rolling bearings of similar capacity.
Vibration and Shock Damping: The sliding contact surface (often a softer material or lubricant film) effectively dampens vibrations and shock loads, providing a smoother, quieter operation.
Contamination Tolerance: Plain bearings are less susceptible to damage from contaminants like dust or debris than rolling-element bearings, as soft sliding layers can embed small particles harmlessly.
Cost-Effective: Their simple manufacturing process and use of abundant carbon steel as a base material result in lower initial and maintenance costs compared to more complex bearing types.
Corrosion Resistance: Outer and inner rings can be phosphate coated to increase corrosion resistance.
Types and Materials
Carbon steel is typically used as the strong backing material, with a specialized sliding layer applied to the inner surface to reduce friction.
Metal-Polymer Composites: These use a low carbon steel backing with a layer of sintered bronze and a sliding surface of PTFE (Teflon) or POM. This creates a self-lubricating, maintenance-free bearing.

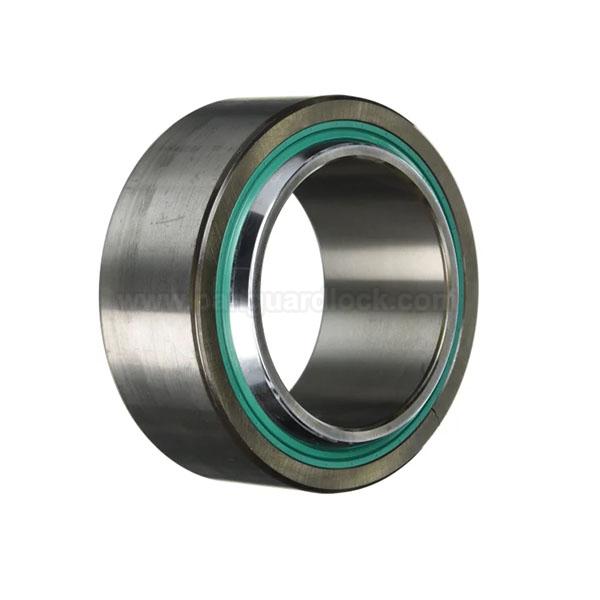

Spherical Plain Bearings: Inner and outer rings made of hardened high-carbon chromium bearing steel that are phosphate treated and coated with molybdenum disulfide (MoS₂) lubricant. These are ideal for high loads and misalignment.
Sintered Metal Bearings: Iron-based sinters can be impregnated with oil to provide self-lubrication. These are porous and suitable for moderate loads and speeds.
Applications
Carbon steel plain bearings are used in a variety of demanding applications:
Automotive Industry: Utilized in suspension systems, steering linkages, and connecting rod bushings where high loads and shock resistance are required.
Heavy Machinery: Essential in construction and mining equipment, hydraulic cylinders, and agricultural machinery due to their high load capacity and tolerance for harsh environments.
Industrial Equipment: Found in pumps, compressors, and various automated systems.
Renewable Energy: Used in solar panel tracking mechanisms and wind turbine pitch control systems where they handle variable loads and environmental exposure
