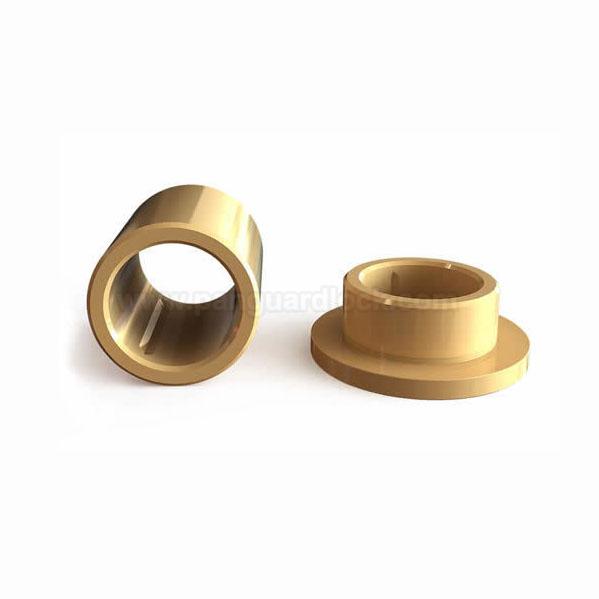

Bronze plain bearings

Bronze plain bearings are durable, cost-effective sliding bearings known for their high load capacity, corrosion resistance, and ability to operate effectively in harsh and contaminated environments.
Key Features and Benefits
High Load and Impact Resistance: The robust nature of bronze allows these bearings to withstand significant static, dynamic, and shock loads, making them suitable for heavy-duty applications.
Corrosion Resistance: Bronze has good resistance to rust and corrosion, including in freshwater and some saltwater environments (certain alloys are better for marine use), which extends service life.
Contamination Tolerance: The sliding surfaces of bronze bearings can embed small dirt particles without damaging the shaft, performing well in dirty or dusty conditions where rolling-element bearings might fail.
Self-Lubrication Options: Many bronze bearings come with lubrication indents, oil grooves, or are oil-impregnated (sintered), providing continuous or self-lubrication to reduce maintenance requirements.
Good Heat Dissipation: Bronze offers good thermal conductivity, which helps dissipate heat generated during operation.
Versatility: They are available in various alloys and can be used in a wide range of temperatures and applications involving rotary, linear, or oscillating movements.
Types of Bronze Plain Bearings
Cast Bronze Bearings (Solid Bronze):
Description: These are fully machined from continuous cast bronze stock (e.g., SAE 660, CDA 932 alloy) and often feature axial lubrication grooves or pockets to retain lubricant.
Use: Ideal for demanding applications, especially with oscillating movements, in industries like offshore, dredging, and heavy mechanical engineering.
Wrapped Bronze Bearings:
Description: Produced from a rolled bronze strip (e.g., phosphor bronze CuSn8), they are wrapped into a bushing shape. The sliding surface has a pattern of diamond-shaped indents or thru-holes to serve as lubricant reservoirs.
Use: Cost-effective for high-load, low-speed applications in construction machinery, agricultural equipment, and automobiles.
Sintered Bronze Bearings:
Description: These are made from porous bronze powder and impregnated with oil during manufacturing. The oil seeps out during rotation and is reabsorbed when stationary, providing self-lubrication.
Use: Suited for high sliding velocities and applications requiring maintenance-free operation, such as power tools, domestic appliances, and automotive starter motors.
Graphite Plugged Bearings:
Description: Solid bronze bearings with integrated plugs of solid lubricant (graphite) embedded in the sliding surface.
Use: Designed for extreme conditions, including very high loads, high temperatures, and corrosive environments, without requiring external lubrication.
Applications
Bronze plain bearings are prevalent in many heavy-duty industries due to their durability and load tolerance:
Construction Machinery: Used in excavators, loaders, and hoisting machines due to their resistance to dirt and high impact loads.
Agriculture: Employed in farm equipment where durability and minimal maintenance in harsh field conditions are crucial.
Automotive and Transportation: Found in transmissions, vehicle suspension components, and engine parts for reliability and strength.
Marine and Offshore: Used in ship propeller shafts, pumps, and offshore equipment because of their resistance to saltwater corrosion.
Energy: Utilized in gearboxes for wind turbines and hydraulic power plants.
