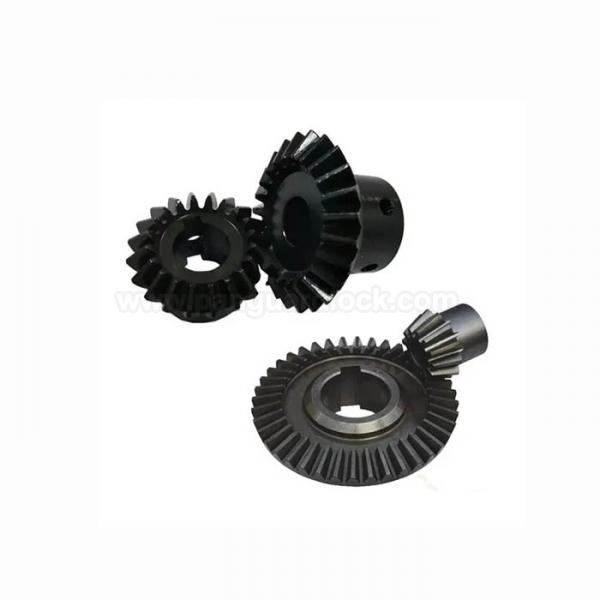

Bevel Gears

A bevel gear is a conical-shaped gear used to transmit power and rotational motion between two intersecting shafts, which are typically, but not always, oriented at a 90-degree angle.
The tooth-bearing faces of the gears are conically shaped, with the teeth tapering towards the apex of the cone. This unique design allows the axis of rotation to be changed efficiently, which is not possible with traditional parallel-shaft gears like spur or helical gears.
Key Characteristics and Function
• Directional Change: The primary function is to change the direction of power transmission, most commonly by 90 degrees.
• Speed and Torque Modification: By using gears with different numbers of teeth, the mechanical advantage can be changed to either increase or decrease rotational speed and inversely affect torque, similar to other gear types.
• Efficiency: Bevel gears are highly efficient in power transmission, with typical efficiency ranging from 97% to 99.5%.
• Paired Use: Bevel gears are manufactured and intended to be used as matched pairs to ensure correct alignment and proper tooth contact, which is crucial for durability and performance.
Types of Bevel Gears
Bevel gears are categorized by the design and orientation of their teeth:
• Straight Bevel Gears: These have straight, tapered teeth that, if extended, would intersect at the apex of the pitch cone.
o Pros: Simple design, easier and less expensive to manufacture, and generate lower axial thrust loads than spiral types.
o Cons: Noisier in operation, especially at high speeds, and generally limited to low-speed applications due to abrupt tooth engagement.
• Spiral Bevel Gears: These feature curved, oblique teeth that engage more gradually and smoothly along their length.
o Pros: Smoother, quieter operation, higher load-carrying capacity, and better suited for high-speed applications.
o Cons: More complex and costly to manufacture, and generate higher thrust loads that require robust bearings.
• Zerol Bevel Gears: A hybrid type with curved teeth but a zero-degree spiral angle. They offer smoother operation than straight bevel gears while producing minimal thrust loads, making them suitable for medium-load applications.
• Miter Gears: A special case of bevel gears where both gears have the same number of teeth and the shafts are typically at a 90-degree angle. They change the direction of rotation without changing the speed (a 1:1 ratio).
• Hypoid Gears: These are similar to spiral bevel gears, but the axes of the two shafts are offset and do not intersect. They allow for a larger pinion diameter, resulting in a more compact design for high torque applications, commonly found in automotive differentials.
Common Applications
Bevel gears are used across a wide range of industries and machines, including:
• Automotive Industry: Most notably in differential drives, allowing wheels to rotate at different speeds when cornering.
• Hand Tools: Used in hand drills to change the vertical rotation of the handle to a horizontal rotation for the chuck.
• Aviation and Marine: Employed in helicopter and aircraft accessory gearboxes, as well as ship steering and propulsion systems.
• Industrial Machinery: Found in printing presses, cooling tower fans, conveyors, and various machine tools to manage power and motion transfer.
