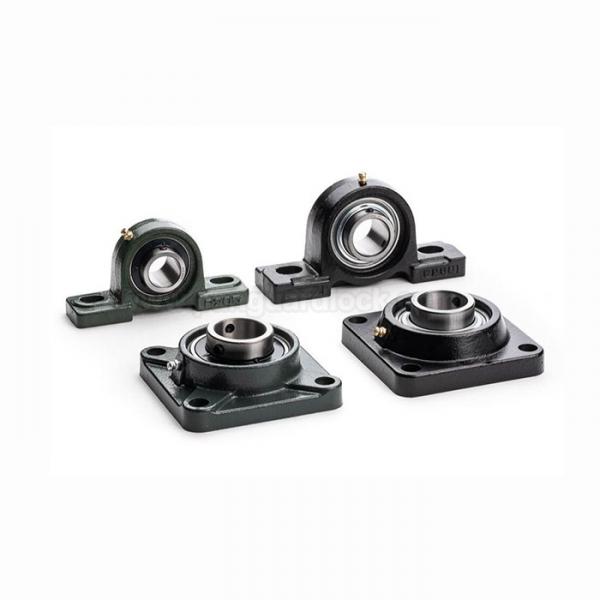

Bearing units

Bearing units are pre-assembled, ready-to-mount bearing systems that combine a bearing insert, housing, and seals into a single, integrated component designed to support rotating shafts while reducing friction. They simplify machine design, installation, and maintenance.
Key Features and Benefits
Easy Installation: Bearing units are ready-to-fit, requiring less specialized knowledge and tools for mounting compared to installing individual bearing components.
Self-Alignment: The bearing insert typically has a convex outer surface that fits into a concave spherical seat in the housing, allowing the unit to accommodate initial misalignment and preventing moment loads caused by mounting errors.
Protection: The housing protects the internal bearing from external contaminants like dust, dirt, moisture, and chemicals, while also helping to retain the lubricant.
Versatility: They are available in various materials (cast iron, stainless steel, thermoplastic) and mounting configurations to suit diverse operating environments.
Reduced Maintenance: Most units come pre-lubricated and sealed for life or are equipped with re-lubrication facilities (grease nipples), reducing ongoing maintenance needs.
Common Types
Bearing units are classified primarily by their housing shape and mounting style:
Pillow (Plummer) Block Units:
Description: Feature a housing with a flat base designed for mounting on a support surface parallel to the shaft.
Application: The most common type, used widely in conveyor systems, agricultural machinery, and pumps.
Flange Units:
Description: Have a flange with two, three, or four bolt holes for mounting on a vertical or inclined surface, with the shaft running perpendicular to the mounting surface.
Application: Often used in food processing machinery, textile equipment, and fans.
Take-Up Units:
Description: Consist of a bearing and a housing that slides in a frame, allowing for easy adjustment of shaft position or belt/chain tension.
Application: Ideal for conveyor rollers and other systems where periodic tension adjustment is needed.
Cartridge Units:
Description: A compact unit where the bearing is fitted into a cylindrical housing, often inserted into a larger machine frame.
Application: Used in systems with space constraints.
Applications
Bearing units are used in almost any machinery with a rotating shaft due to their versatility and ease of use:
Industrial Automation and Conveyors: For reliable and low-maintenance support of rotating shafts in manufacturing and material handling lines.
Agriculture and Construction: In tractors, harvesters, and heavy machinery, where durability and resistance to harsh, dirty environments are crucial.
Food and Beverage Processing: Stainless steel or thermoplastic units are used to meet hygiene standards and resist frequent washdowns and corrosive cleaning agents.
HVAC Systems: Support rotating fans and compressors in ventilation and heating systems.
