Bearing housings

Bearing housings are essential mechanical components designed to support, protect, and align the bearings within rotating machinery. They help maintain proper lubrication and prevent contaminants from damaging the bearings, maximizing their performance and service life.
Key Functions
Support and Alignment: The housing provides a stable mounting surface and ensures the correct alignment of the bearing and shaft, which is critical for smooth operation and minimal wear.
Protection: They act as a protective barrier, keeping dirt, dust, water, and chemicals out while retaining the necessary lubricant within the assembly.
Load Distribution: Housings transmit the load from the rotating element (the shaft) to the stationary machine frame or support structure.
Vibration and Shock Damping: The material and design of the housing can help absorb shocks and dampen vibrations, leading to quieter operation and preventing premature bearing failure.
Common Types
Bearing housings are available in various standard types, primarily defined by their shape and mounting configuration:

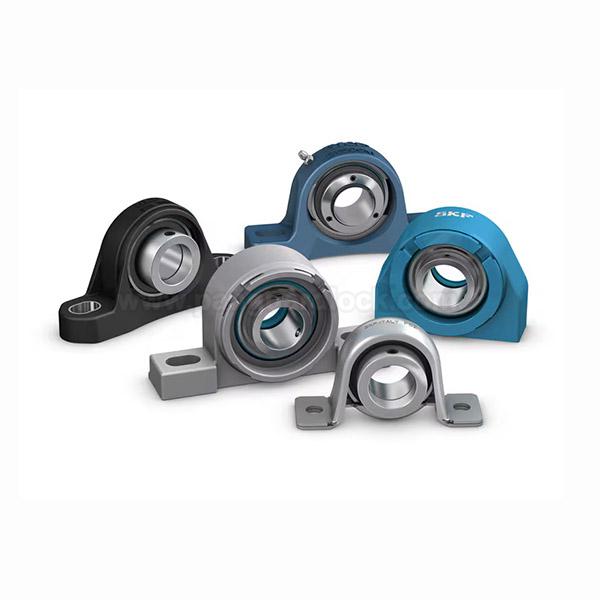

Pillow Block (Plummer Block) Housings: These are the most common type, featuring a pedestal or base with a flat mounting surface designed to support a horizontal shaft. They are often split, allowing for easy bearing installation and removal without disassembling the shaft.
Flange Housings: These have a flat mounting surface (flange) with multiple bolt holes (two, three, or four) that allow them to be attached directly to a machine frame or wall, usually with the shaft perpendicular to the mounting surface.
Take-Up Housings: These units have a slotted base that allows the entire assembly to slide within a guide frame. This design enables easy adjustment of the shaft position, commonly used for tensioning belts or chains in conveyor systems.
Cartridge Units: A compact, self-contained unit that includes the bearing and seals within a cylindrical housing, often inserted into a bored hole in the machine frame.
Materials
The choice of housing material depends heavily on the operating conditions and environmental factors:
Grey Cast Iron: The standard and most common material, offering good strength, durability, thermal conductivity, and cost-effectiveness for most general industrial applications.
Spheroidal Graphite Cast Iron (Ductile Iron): Provides higher strength and toughness than grey cast iron, suitable for more demanding, high-load applications.
Cast Steel: Used for heavy-duty applications, such as mining and construction machinery, where high strength and impact resistance are essential.
Stainless Steel: Offers superior corrosion resistance to water, chemicals, and cleaning agents, making it ideal for the food and beverage, marine, and pharmaceutical industries.
Thermoplastics/Composite (Polymer): Lightweight, corrosion-resistant, and electrically insulating. These are cost-effective options for hygiene-focused or wet environments with light-to-moderate loads
