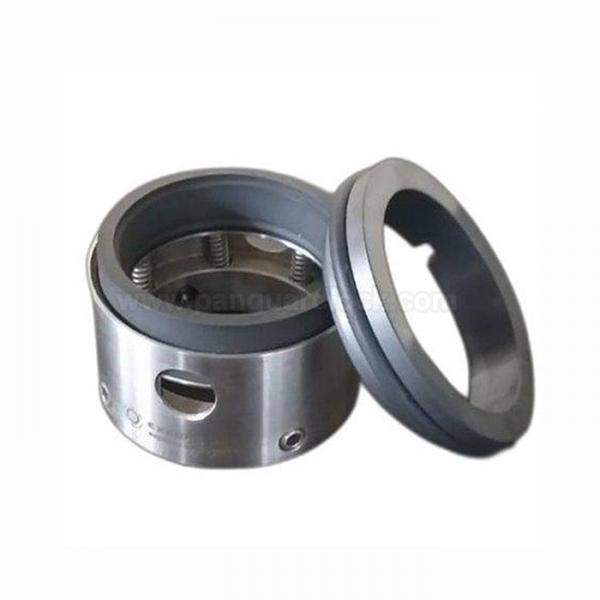

Balanced Mechanical Seals

Balanced mechanical seals are advanced sealing solutions used in pumps and rotating equipment that utilize an engineered design feature to reduce the closing force and hydraulic pressure acting on the seal faces. This design allows for reliable, low-wear operation in high-pressure applications where standard unbalanced seals would overheat and fail rapidly.
Key Features and Benefits
High-Pressure Capability: The primary advantage is the ability to handle significantly higher pressures (typically above 15 bar or 200 PSI) efficiently and reliably compared to unbalanced seals.
Reduced Heat Generation: By balancing the pressure on the seal faces, frictional heat is dramatically reduced, which prevents the fluid film from vaporizing (flashing) and extends the seal's service life.
Longer Service Life: The controlled face pressure minimizes wear and tear on the primary sealing faces, leading to enhanced durability and longer operational periods between maintenance cycles.
Improved Reliability: The stable operation in demanding conditions translates directly to fewer unexpected leaks or failures, increasing equipment uptime and safety.
Accommodates Fluid Fluctuations: Balanced designs handle pressure surges and fluctuations more effectively, ensuring the seal remains stable and continues to operate smoothly.
Common Types and Construction
Balanced seals are available in various configurations, including component seals and easy-to-install cartridge units:
Pusher Designs: The standard configuration uses an O-ring or wedge secondary seal that moves axially, but the sealing faces are specifically designed with a reduced contact area relative to the shaft diameter to achieve pressure balancing.
Metal Bellows Seals: The fundamental design of many metal bellows seals inherently makes them pressure-balanced, which is why they are often the preferred choice for high-temperature and high-pressure services.
Cartridge Seals: Many modern, high-performance balanced seals are sold as complete cartridge units, which are pre-assembled for correct installation around the shaft, minimizing human error and downtime.
Applications
Balanced mechanical seals are essential for demanding applications across various industries where performance and reliability are critical:
Oil and Gas/Petrochemicals: In refineries, pipelines, and offshore platforms for handling high-pressure hydrocarbons, crude oil, and various volatile process fluids.
Power Generation: Used in boiler feed pumps and other critical equipment operating under high temperature and pressure conditions.
Chemical Processing: For pumps handling aggressive or hazardous chemicals under high pressure where reliable containment is paramount.
Mining and Slurry Applications: In heavy-duty pumps, balanced designs are often used to manage high pressures and minimize wear in abrasive environments.
